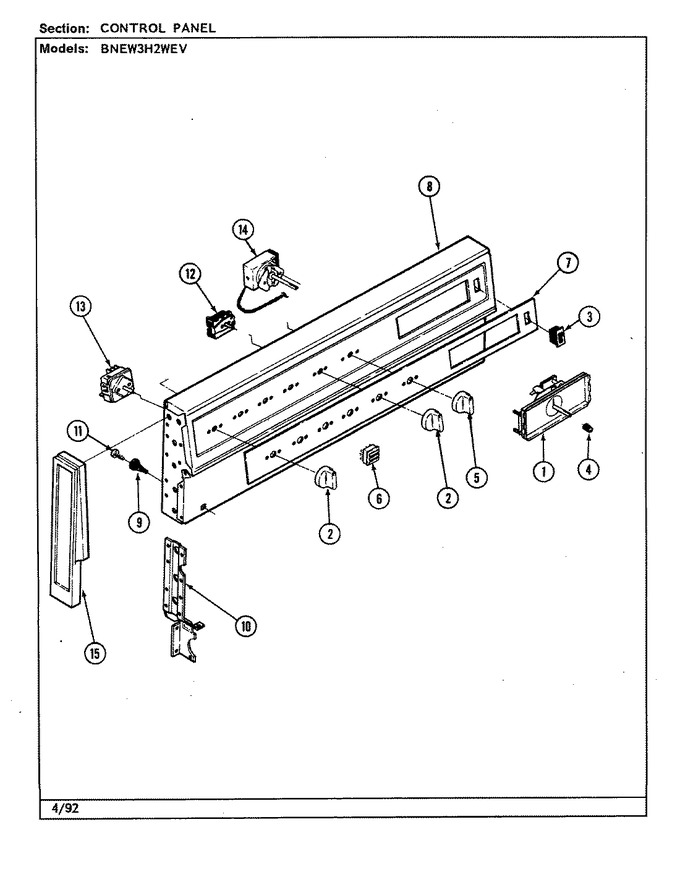

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P102-60 | Clock | 01 |
|
- | ||||
| 1 | 7902P108-60 | Glass, Clock | 01 |
|
- | ||||
| 2 | 7737P011-60 | Knob, Switch (wht) | 01 |
|
- | ||||
| 3 | 7403P200-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 4 | 7711P419-60 | Knob, Clock (wht) | 01 |
|
- | ||||
| 5 | 7739P036-60 | Knob | 01 |
|
- | ||||
| 6 | 7407P065-60 | Light, Signal | 01 |
|
- | ||||
| 7 | 7703P397-60 | Trim, Inlay | 01 |
|
- | ||||
| 8 | 2601W258-74 | Backguard Assy | 01 |
|
- | ||||
| 8 | 2601W258-71 | Backguard Assy | 01 |
|
- | ||||
| 8 | 4005F004-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 9 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 10 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 10 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 11 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 7403P031-60 | Switch, Selector | 01 |
|
- | ||||
| 12 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 13 | 7403P263-60 | Switch, Infinite (2400w) | 01 |
|
- | ||||
| 13 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 13 | WP7403P238-60 | Switch, Infinite (1400w) (Replaces: 7403P262-60) | 01 |
|
Immediately | $ 57.78 | |||
| 14 | 7404P029-60 | Thermostat | 01 |
|
- | ||||
| 14 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 15 | 7726P021-60 | End Cap, Backguard (rt-chr) | 01 |
|
- | ||||
| 15 | 8112P089-60 | Manual, Use & Care | 01 |
|
- | ||||
| 15 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 15 | 7726P010-60 | End Cap, Backguard (lt-chr) | 01 |
|
- |
