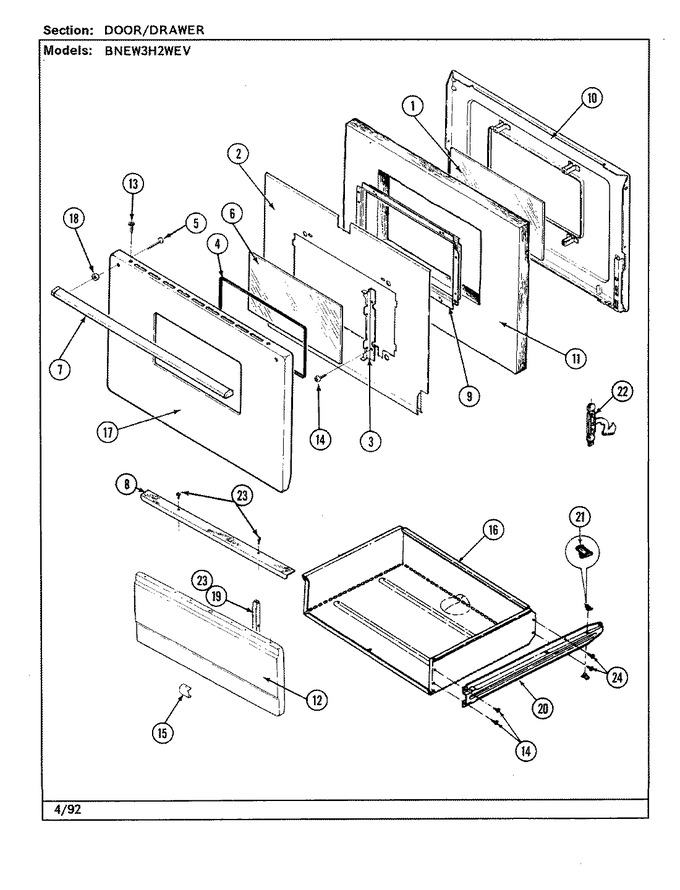

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven


05 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7902P035-60		Glass, Door Inner	01	Appelez-nous	-
2	3601F094-51		Baffle, Oven Door	01	Appelez-nous	-
3	3804F095-80		Retainer, Glass	01	Appelez-nous	-
4	7201P017-60		Gasket, Window	01			$ 52.69
5	WP3387230		Screw, Clamp   (Replaces: 7101P080-60)	01		Immediately	$ 7.69
6	7902P326-60		Glass, Door (outer)	01	Appelez-nous	-
7	2411F003-71		Handle, Door (wht)	01	Appelez-nous	-
8	2411F001-71		Handle Door Wht	01	Appelez-nous	-
9	3603F013-80		Frame, Window----na	01	Appelez-nous	-
10	2402W154-19		Lining, Oven Door	01	Appelez-nous	-
11	4804F021-60		Insulation, Door	01	Appelez-nous	-
12	2416F006-62		Panel, Drawer (white)	01	Appelez-nous	-
13	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	01			$ 6.47
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
15	3801F031-51		Bracket	01	Appelez-nous	-
16	3405F008-80		Drawer, Service	01	Appelez-nous	-
17	2401F042-71		Panel, Door (wht)	01	Appelez-nous	-
18	8010P002-60		Spacer, Handle	01	Appelez-nous	-
19	3802F084-45		Brace Serv Door	01	Appelez-nous	-
19	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
20	3406F026-80		Runner, Inner	01	Appelez-nous	-
21	8016P009-60		Glide, Drawer	01	Appelez-nous	-
21	8016P004-60		Glide, Drawer	01	Appelez-nous	-
22	3420A033-34		Stop, Oven Door	01	Appelez-nous	-
23	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	01		Immediately	$ 12.62
24	7101P287-60		Screw, Metal Grounding	01			$ 12.03
