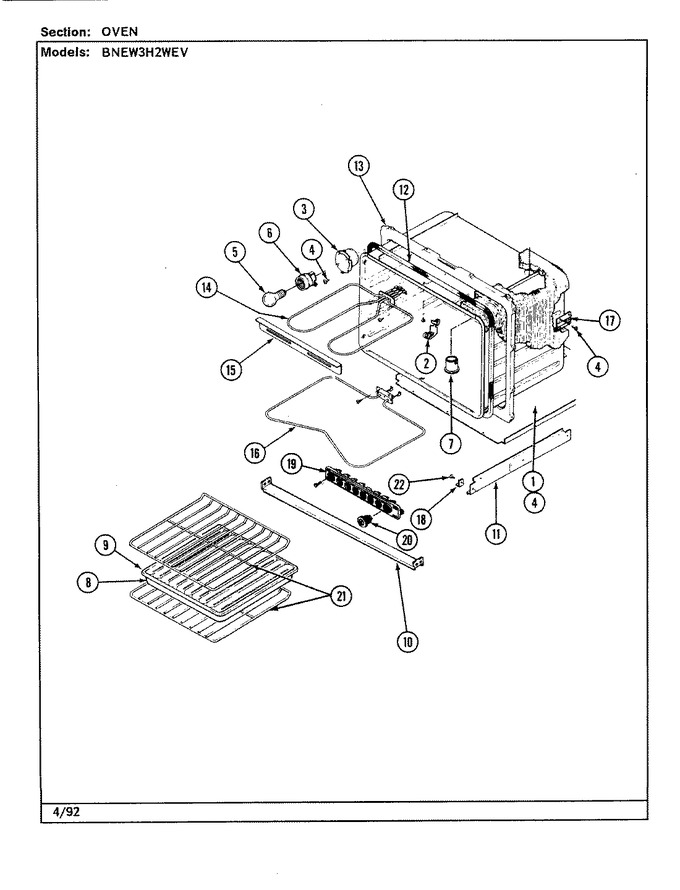

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3804F102-80		Retainer, Bottom Insulation	01	Appelez-nous	-
1	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
2	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)	01		Immediately	$ 11.07
3	4001F016-23		Housing, Lamp	01	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P061-60)	01		Immediately	$ 6.85
5	40A15		Bulb, Oven   (Replaces: 7407P026-60)	01		Immediately	$ 1.98
6	7408P002-60		Receptacle, Lamp	01	Appelez-nous	-
7	8026P003-60		Tube, Oven Vent	01	Appelez-nous	-
8	4396923		Pan, Broil   (Replaces: 3401F004-19)	01		Immediately	$ 52.04
9	4396923		Insert, Broil Pan   (Replaces: 3413F002-19)	01		Immediately	$ 52.04
10	3802F076-51		Brace, Inner Side	01	Appelez-nous	-
11	3406F027-51		Runner, Outer	01	Appelez-nous	-
12	7212P002-60		Seal, Oven	01	Appelez-nous	-
13	W10124350		Not Required Part Or See Note Frame, Front (not Replaceable)	01	Appelez-nous	-
14	WPY04000048		Element, Broil   (Replaces: 7406P076-60)	01			$ 160.58
15	3807F176-19		Support, Broil Element	01	Appelez-nous	-
16	WPY04000041		Element, Bake   (Replaces: 7406P067-60)	01			$ 133.20
16	7101P287-60		Screw, Metal Grounding	01			$ 12.03
17	3807F205-45		Support, Oven Rear	01	Appelez-nous	-
18	8016P005-60		Glide, Front	01	Appelez-nous	-
19	3601F177-80		Baffle, Air Duct Assy	01	Appelez-nous	-
19	7404P057-60		Thermostat, Redundant	01	Appelez-nous	-
19	7401A032-60		Block, Fuse Assy.	01	Appelez-nous	-
20	702007		Breaker (15 Amp)	01	Appelez-nous	-
20	702006		Breaker Circuit, 20amp	01	Appelez-nous	-
21	7801P030-60		Rack, Oven	01			$ 57.14
22	7101P013-60		Screw, Special	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
