01 - Body
02 - Control Panel
03 - Door/drawer
04 - Internal Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

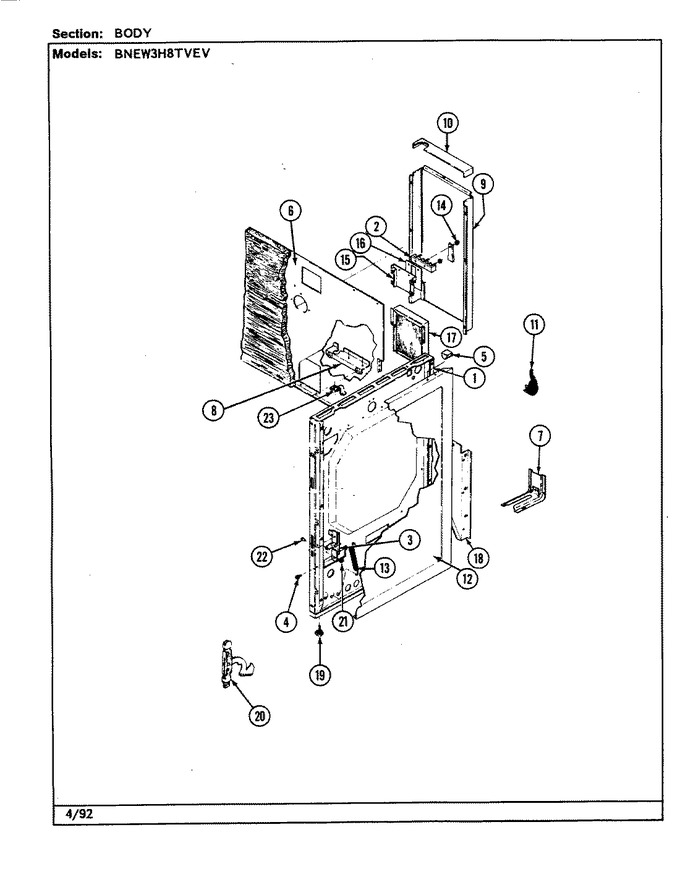

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4009W054-80 | Inner Side Lining Assy | 01 |
|
- | ||||
| 1 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 1 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 2 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) | 01 |
|
Immediately | $ 31.65 | |||
| 3 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 3 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 3 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 4 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 5 | 8003P011-60 | Spacer, Main Top | 01 |
|
- | ||||
| 6 | 4002F160-80 | Back, Main | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 01 |
|
Immediately | $ 4.69 | |||
| 7 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 01 |
|
$ 26.33 | ||||
| 8 | 3605F163-80 | Plate Conduit | 01 |
|
- | ||||
| 9 | 4001F047-80 | Housing, Main Wire | 01 |
|
- | ||||
| 10 | 4005F182-80 | Cover, Wire Housing | 01 |
|
- | ||||
| 11 | 7402P036-60 | Cord, Power | 01 |
|
- | ||||
| 12 | 2618F073-71 | Panel, Side (wht)----na | 01 |
|
- | ||||
| 13 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 14 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) | 01 |
|
Immediately | $ 6.47 | |||
| 15 | 3807F157-80 | Support, Terminal Block | 01 |
|
- | ||||
| 16 | 7003P018-60 | Insulation, Term Bd | 01 |
|
- | ||||
| 17 | 4005F282-51 | Cover, Flue Box | 01 |
|
- | ||||
| 18 | 3802F010-80 | Brace, Back-right | 01 |
|
- | ||||
| 18 | 3802F008-80 | Brace, Back-left | 01 |
|
- | ||||
| 19 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 20 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 21 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 22 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 23 | 5170D134-60 | Harness, Main Wire | 01 |
|
- | ||||
| 23 | 5125A330-60 | Harness, Loose Wire | 01 |
|
- | ||||
| 23 | 7112P030-60 | Clip, Top Retainer | 01 |
|
- |
