01 - Body
02 - Control Panel
03 - Door/drawer
04 - Internal Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

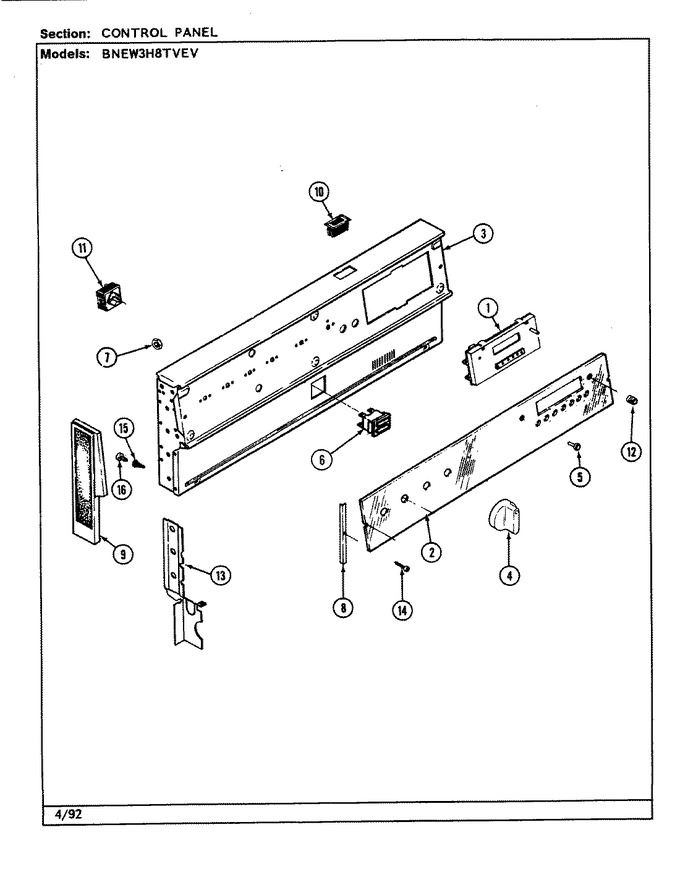

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7601P180-60 | Clock, Electronic | 01 |
|
- | ||||
| 1 | 7201P052-60 | Pad, Foam Gasket | 01 |
|
- | ||||
| 2 | 7910P172-60 | Glass, Control Panel | 01 |
|
- | ||||
| 3 | 4005F338-80 | Cover, Bkgd Wire | 01 |
|
- | ||||
| 3 | 2601W355-81 | Control Panel | 01 |
|
- | ||||
| 4 | 7737P011-60 | Knob, Switch (wht) | 01 |
|
- | ||||
| 5 | 7711P453-60 | Button, Ctrl Set | 01 |
|
- | ||||
| 6 | 7407P066-60 | Lamp Indicator | 01 |
|
- | ||||
| 7 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 8 | 7742P017-60 | Trim, Retainer | 01 |
|
- | ||||
| 9 | 7726P031-60 | Trim, Bkgd End (lt) | 01 |
|
- | ||||
| 9 | 7726P032-60 | Trim, Bkgd End (rt) | 01 |
|
- | ||||
| 10 | 7403P200-60 | Switch, Rocker (wht) | 01 |
|
- | ||||
| 11 | 7403P269-60 | Switch, Infinite (2600w) | 01 |
|
- | ||||
| 11 | 7403P268-60 | Switch, Infinite (1400w) | 01 |
|
- | ||||
| 12 | WP7711P492-60 | Knob, Clock (wht) (Replaces: 7711P432-60) | 01 |
|
$ 12.13 | ||||
| 13 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 13 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 13 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 14 | 7101P008-60 | Screw | 01 |
|
- | ||||
| 15 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 16 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 |
