SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Internal Controls
05 - Oven
06 - Top Assembly
SELECT A DIAGRAM
New Model Search:

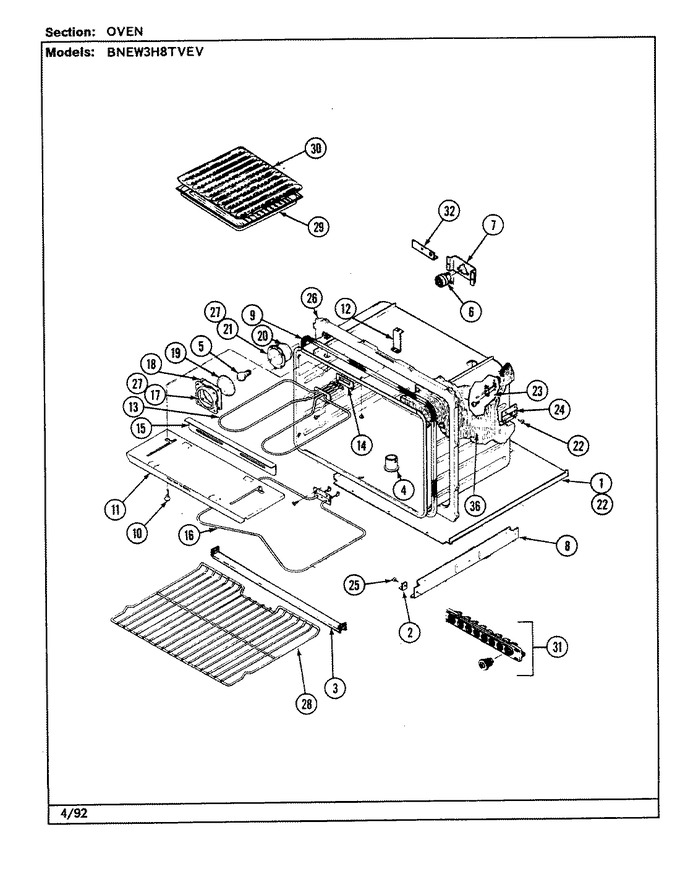

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3804F102-80 | Retainer, Bottom Insulation | 01 |
|
- | ||||
| 2 | 8016P005-60 | Glide, Front | 01 |
|
- | ||||
| 3 | 3802F076-51 | Brace, Inner Side | 01 |
|
- | ||||
| 4 | 8026A007-60 | Tube, Vent | 01 |
|
- | ||||
| 5 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 6 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 7 | 3801F024-51 | Bracket | 01 |
|
- | ||||
| 8 | 3406F027-51 | Runner, Outer | 01 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 7201P036-60 | Gasket, Oven | 01 |
|
$ 118.90 | ||||
| 10 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 11 | 3604F092-45 | Shield, Broil | 01 |
|
- | ||||
| 12 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- | ||||
| 13 | 7406P068-60 | Element, Broil | 01 |
|
- | ||||
| 14 | 7201P003-60 | Gasket, Element | 01 |
|
- | ||||
| 15 | 3807F176-15 | Support, Broil Element | 01 |
|
- | ||||
| 16 | WPY04000041 | Element, Bake (Replaces: 7406P067-60) | 01 |
|
$ 133.20 | ||||
| 17 | 3804F012-45 | Retainer, Lamp Guard | 01 |
|
- | ||||
| 18 | 7201P015-60 | Gasket, Lamp Retainer | 01 |
|
- | ||||
| 19 | 7902P057-60 | Glass, Lamp Guard | 01 |
|
- | ||||
| 20 | 4001F020-23 | Housing, Lamp | 01 |
|
- | ||||
| 21 | 7201P014-60 | Gasket, Housing | 01 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 23 | 7403P010-60 | Switch, Flame | 01 |
|
- | ||||
| 24 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 25 | 7101P013-60 | Screw, Special | 01 |
|
- | ||||
| 26 | W10124350 | Not Required Part Or See Note Front,oven (not Replaceable) | 01 |
|
- | ||||
| 27 | 7101P287-60 | Screw, Metal Grounding | 01 |
|
$ 12.03 | ||||
| 28 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 29 | 4396923 | Pan, Broil (Replaces: 3401F004-19) | 01 |
|
Immediately | $ 52.04 | |||
| 30 | 4396923 | Insert, Broil Pan (Replaces: 3413F002-19) | 01 |
|
Immediately | $ 52.04 | |||
| 31 | 3601F177-80 | Baffle, Air Duct Assy | 01 |
|
- | ||||
| 31 | 7401A031-60 | Block, Fuse | 01 |
|
- | ||||
| 31 | 7404P057-60 | Thermostat, Redundant | 01 |
|
- | ||||
| 31 | 702007 | Breaker (15 Amp) | 01 |
|
- | ||||
| 31 | 702009 | Box, Burner | 01 |
|
- | ||||
| 31 | 702006 | Breaker Circuit, 20amp | 01 |
|
- | ||||
| 32 | 3604F007-80 | Shield, Light Receptacle | 01 |
|
- | ||||
| 33 | 3801F093-45 | Bracket, Burner Box | 01 |
|
- |
