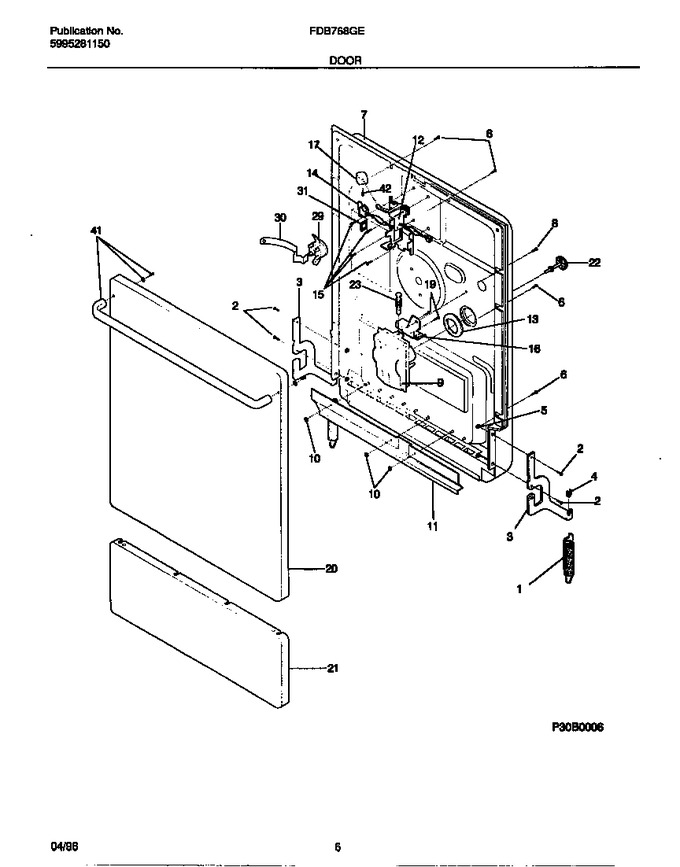

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809703		Spring-door, (2)				$ 39.04
2	154093301		Screw-arm Assy			Immediately	$ 2.12
3	5303270031		Arm Assy, Rh & Lh				$ 79.75
3	5303298513		Pin-arm (not Illustrated)				$ 39.98
3	154221401		Cover-arm (not Illustrated)		Appelez-nous	-
4	5300805884		Pad-spring		Appelez-nous	-
5	154079601		Nut-arm Assy				$ 0.41
6	154419403		Screw,8a X .375``   (Replaces: 5300808658)				$ 13.10
7	154196901		Door Assy		Appelez-nous	-
8	5300808749		Screw-control Pnl Mtg		Appelez-nous	-
9	5300806753		Body-dispenser				$ 69.93
10	154026601		Speednut-baffle				$ 25.67
11	154185301		Baffle Seal		Appelez-nous	-
12	154132507		Latch Assy		Appelez-nous	-
13	5300805631		Grommet-rinse Agent				$ 6.29
14	154105301		Switch-door Latch				$ 21.63
15	218781101		Screw-8-18 X 5/8   (Replaces: 154026501)				$ 15.60
16	5300809782		Bi-metal-rinse Disp				$ 47.51
17	5303270210		Knob-latch-white		Appelez-nous	-
19	5300807501		Screw-bi-metal Assy		Appelez-nous	-
20	154205602		Panel-door, Stainless		Appelez-nous	-
21	154205701		Panel-access Dr, Stainless		Appelez-nous	-
22	154121401		Plug-fill		Appelez-nous	-
23	5300806757		Plunger				$ 49.30
29	5300808956		Thermostat				$ 3.78
30	5300809097		Retainer-thermostat		Appelez-nous	-
31	154142901		Cover-switch		Appelez-nous	-
41	154207003		Towel Bar Assy		Appelez-nous	-
42	154202601		Screw-latch Knob		Appelez-nous	-
*71762	154200601		Screw-10-16 X 3/8				$ 7.98
