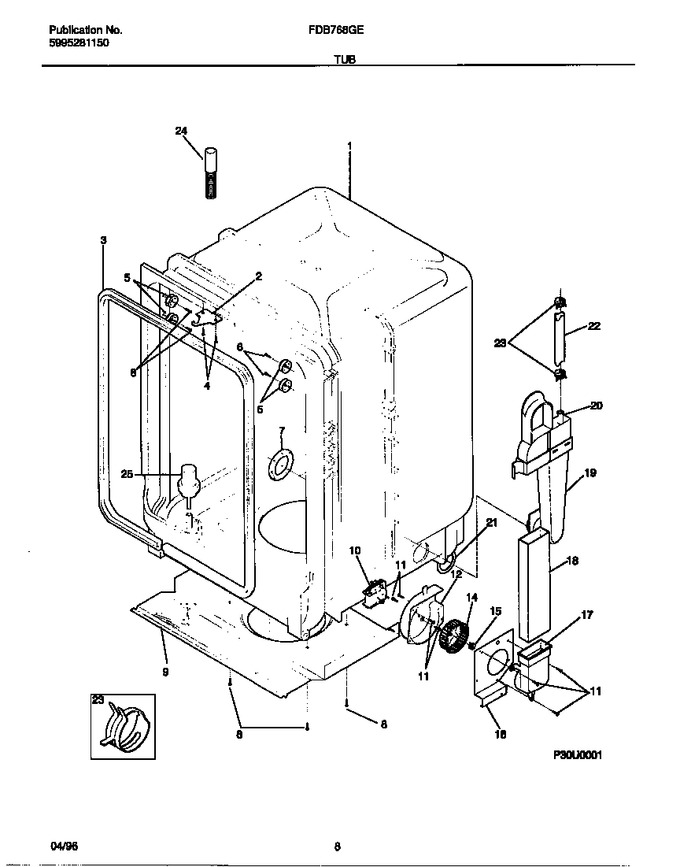

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303943090		Tub Assy W/gasket		Appelez-nous	-
2	5300809610		Strike Door		Appelez-nous	-
3	5300809611		Gasket Tub				$ 41.15
4	154151901		Screw-strike, (2)		Appelez-nous	-
5	5304507405		Roller-tub   (Replaces: 154213401)			Immediately	$ 25.79
6	5303943103		Screw W/washer,(8)			Immediately	$ 17.72
7	5300809724		Nut-blower		Appelez-nous	-
8	154041001		Screw,plask 1 ,10-10 X 9/16		Appelez-nous	-
9	5303316289		Pan-bottom		Appelez-nous	-
10	5303943113		Motor-blower		Appelez-nous	-
11	154202301		Screw-blower Mtg, (8)		Appelez-nous	-
12	154160101		Housing-blower		Appelez-nous	-
14	08016015		Wheel-blower				$ 13.05
15	5300809728		Clamp-blower		Appelez-nous	-
16	154158702		Plate-blower Mounting		Appelez-nous	-
17	5300809729		Vent-blower		Appelez-nous	-
18	154161701		Duct-blower		Appelez-nous	-
19	5300809616		Inlet-blower		Appelez-nous	-
20	5300809730		Cap-water Inlet		Appelez-nous	-
21	5300809618		Gasket Blower		Appelez-nous	-
22	5303300865		Tubing-water Inlet		Appelez-nous	-
23	5300807813		Clamp		Appelez-nous	-
24	3100021801		Hose-drain				$ 73.00
25	154144301		Float		Appelez-nous	-
*71763	154200601		Screw-10-16 X 3/8				$ 7.98
*71764	154216701		Insulation-tub		Appelez-nous	-
