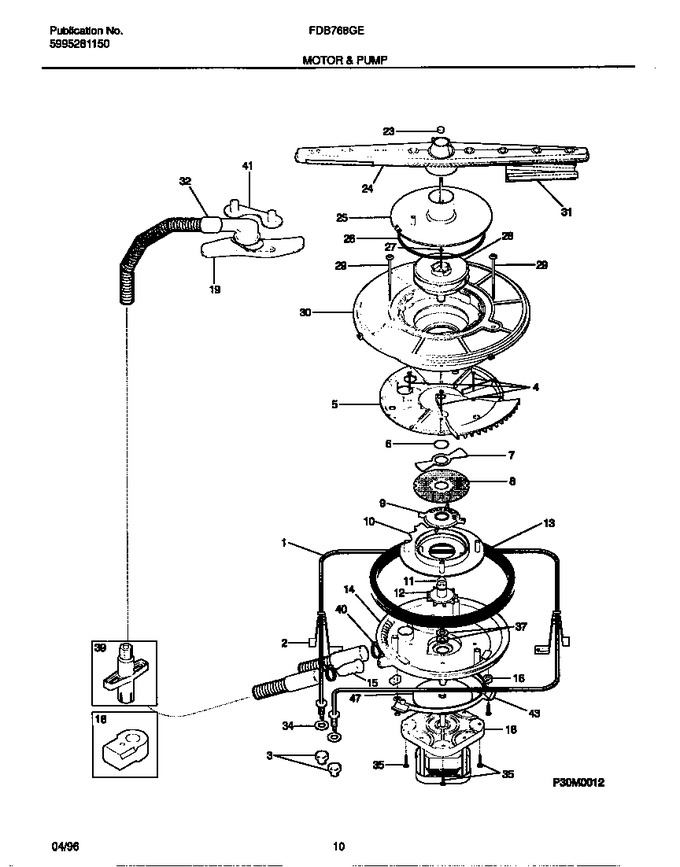

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154188901 | Heater |
|
$ 120.65 | |||||
| 2 | 5300810094 | Screw-heater Bracket (not Illustrated) |
|
- | |||||
| 2 | 5300809585 | Bracket-heater |
|
- | |||||
| 3 | 154106202 | Nut,heater ,(2) (Replaces: 154106201) |
|
Immediately | $ 18.32 | ||||
| 4 | 154086301 | Screw-volute Cover, (4) |
|
- | |||||
| 5 | 154084701 | Plate-seperator |
|
- | |||||
| 6 | 154085201 | Ring-snap |
|
- | |||||
| 7 | 154085001 | Blade-macerator |
|
- | |||||
| 8 | 154084901 | Screen-macerator |
|
- | |||||
| 9 | 154085101 | Shroud |
|
- | |||||
| 10 | 154084601 | Cover-volute |
|
- | |||||
| 11 | 5303351052 | O-ring |
|
$ 4.58 | |||||
| 12 | 5303943126 | Impeller-lower |
|
$ 84.75 | |||||
| 13 | 154085501 | Gasket-pump |
|
$ 103.48 | |||||
| 14 | 154155802 | Housing-pump |
|
- | |||||
| 15 | 5300809937 | Check Valve |
|
$ 74.71 | |||||
| 16 | 154084801 | Pump-retainer, (4) |
|
- | |||||
| 16 | 154213201 | Screw-retainer, (3) (not Illustrated) |
|
- | |||||
| 18 | 5303943107 | Motor-pump |
|
- | |||||
| 19 | 154085801 | Seal, Second Level (not Illustrated) |
|
- | |||||
| 19 | 154119401 | Spray Arm-upper |
|
$ 59.85 | |||||
| 23 | 154190401 | Nut-spray Arm |
|
$ 21.00 | |||||
| 24 | 154156601 | Spray Arm-lower |
|
- | |||||
| 25 | 154157401 | Cover-filter Assy |
|
$ 63.89 | |||||
| 26 | 154086001 | Seal-filter Housing |
|
$ 18.17 | |||||
| 27 | 154089201 | Screw-upper Impeller |
|
- | |||||
| 28 | 154085301 | Impeller-upper |
|
$ 35.96 | |||||
| 29 | 154086201 | Screw-filter Housing |
|
- | |||||
| 30 | 154086101 | Housing-filter |
|
$ 36.33 | |||||
| 31 | 5300809938 | Shield-spray Arm, (2) |
|
$ 37.05 | |||||
| 32 | 154119301 | Tube, Delivery |
|
- | |||||
| 34 | 154064901 | Washer-insulating |
|
$ 8.14 | |||||
| 35 | 154200901 | Screw-motor Mtg |
|
$ 14.39 | |||||
| 37 | 5303943099 | Seal Kit |
|
- | |||||
| 39 | 154154801 | Tool - 4 In 1 |
|
- | |||||
| 40 | 154611101 | Clamp-hose (Replaces: 154106801) |
|
$ 12.05 | |||||
| 41 | 154126401 | Plate-mounting, Upper Spray Arm |
|
- | |||||
| 43 | 5300809590 | Clamp,pump |
|
$ 47.93 | |||||
| 47 | 5300809366 | Watershield Assy |
|
$ 2.26 | |||||
| *71765 | 154149801 | Lockwasher |
|
- |
