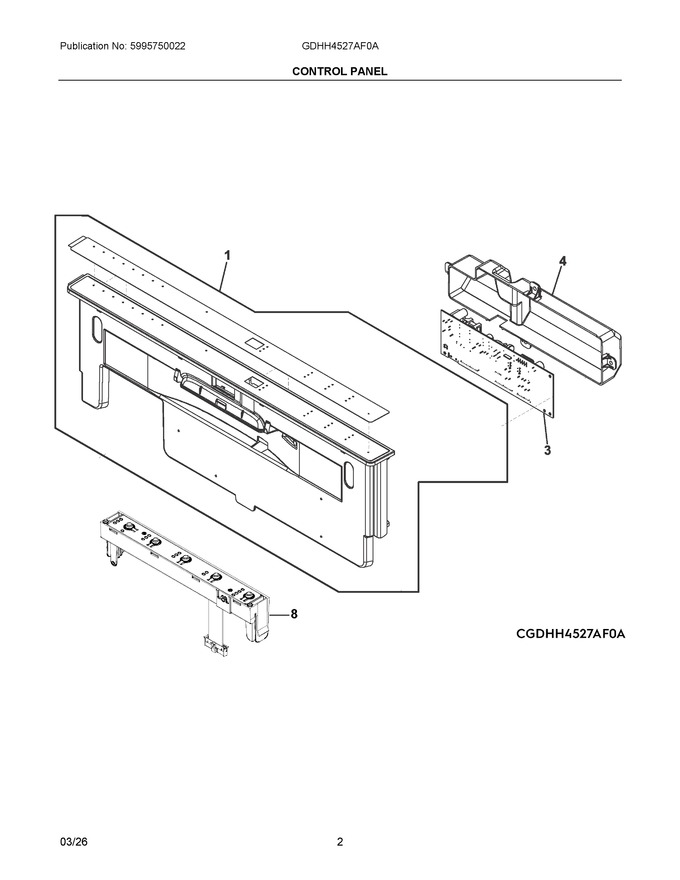

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140321482014		Console Assembly, W/overlay		Appelez-nous	-
3	140217719115		Pc Board, Assembly		Appelez-nous	-
4	140311275014		Cover, Pc Board		Appelez-nous	-
8	5304535645		Pc Board, Assembly, Board & Housing			Immediately	$ 51.01
NI	140306419015		Wiring Harness, Main		Appelez-nous	-
NI	5304506894		Gasket, Control Cover				$ 14.59
NI	154783101		Screw, Plt, 8-10			Immediately	$ 7.09
NI	154294701		Screw, #7 Plas .375, (6), Disp. Assy.				$ 9.22
