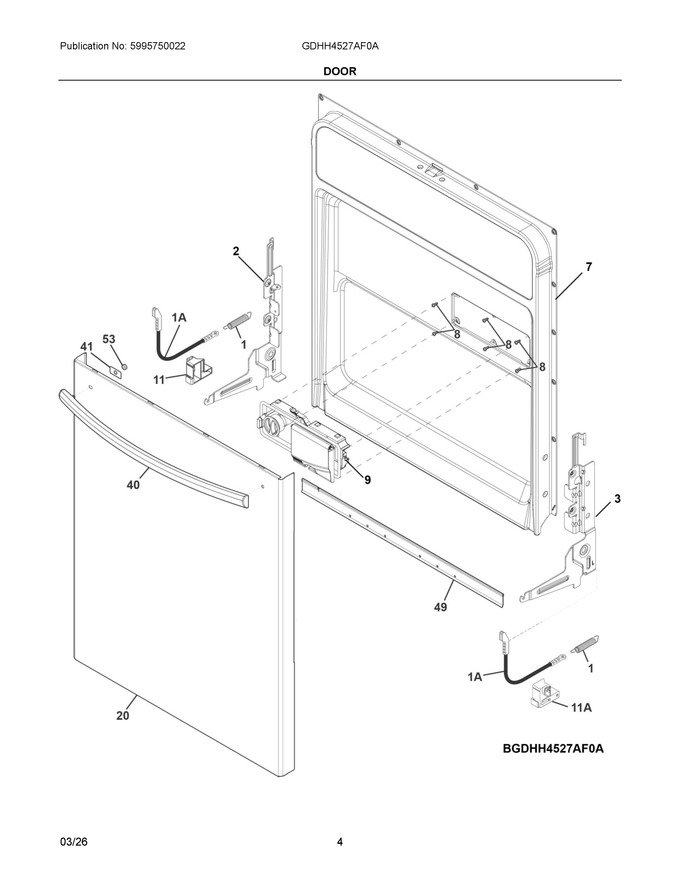

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154579101 | Spring, Friction Pulley, (2) |
|
Immediately | $ 40.50 | ||||
| 2 | 140291857021 | Hinge, Arm, Lh |
|
- | |||||
| 3 | 140291857013 | Hinge, Arm, Rh |
|
- | |||||
| 4 | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| 7 | 140290203029 | Inner Door Panel |
|
- | |||||
| 8 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 9 | 5304532199 | Dispenser, Det/rinse Aid, W/level Ind. |
|
$ 65.18 | |||||
| 11 | 154579201 | Pulley, Friction, Lh |
|
Immediately | $ 47.48 | ||||
| 20 | 140101218075 | Door Assembly, Outer, Stainless |
|
- | |||||
| 40 | 5304532242 | Handle, Towel Bar, Stainless |
|
$ 121.40 | |||||
| 41 | 154603401 | Plate, Handle Support, (2) |
|
Immediately | $ 16.30 | ||||
| 49 | 140301195016 | Gasket, Door |
|
- | |||||
| 51 | 154320301 | Clamp, Drip Loop, Wire |
|
$ 62.69 | |||||
| 53 | 154425001 | Nut, Keps, (2), Handle Mtg. |
|
$ 9.93 | |||||
| 11A | 154579202 | Pulley, Friction, Rh |
|
Immediately | $ 47.48 | ||||
| 1A | 154756401 | Cable, Friction Pulley, (2) (Replaces: 154578801) |
|
Immediately | $ 11.89 | ||||
| NI | 154754701 | Screw, Truss Hd, 8-18 Type Ab |
|
$ 3.55 | |||||
| NI | 154103702 | Screw, Latch Mtg, (2) |
|
$ 13.46 | |||||
| NI | 154686401 | Bearing, Hinge Pin |
|
$ 10.63 | |||||
| NI | 154647101 | Hinge Pin, Arm Assy |
|
$ 14.18 | |||||
| NIA | 5304525214 | Shield, Dispenser Assy |
|
Immediately | $ 10.13 |
