01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

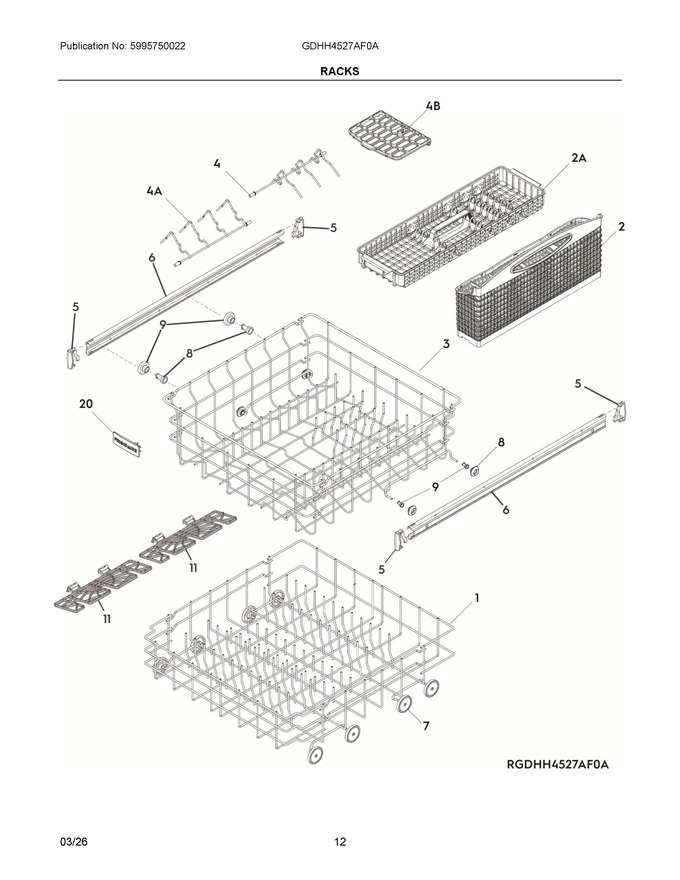

| 1 | 5304535647 | Rack Assembly, Lower |
|
$ 128.25 | |||||
| 2 | 5304535382 | Basket Assembly, Silverware, Earl Gray, W/3 Lids (Replaces: 5304532213) |
|
Immediately | $ 25.43 | ||||
| 3 | 140229954155 | Upper Rack, Assembly |
|
- | |||||
| 4 | 140054922038 | Lid, 3 Wire |
|
- | |||||
| 5 | 5304532200 | Cap, Rack Slide, Midnight Ink |
|
Immediately | $ 4.43 | ||||
| 6 | 140314486014 | Slide, Rack, Upper |
|
- | |||||
| 7 | 5304535381 | Wheel & Bushing, Assembly, Midnight Ink |
|
Immediately | $ 10.05 | ||||
| 8 | 5304534218 | Bushing, Roller, Upper Rack |
|
Immediately | $ 0.61 | ||||
| 9 | 5304534219 | Roller, Upper Rack |
|
$ 0.83 | |||||
| 11 | 5304532945 | Cup Shelf, Stemware, Midnight |
|
$ 7.42 | |||||
| 20 | 5304532251 | Nameplate, Upper Rack, Midnight Ink |
|
- | |||||
| 2A | 140296265014 | Cutlery Basket, Silverware |
|
- | |||||
| 4A | 140054923036 | Lid, 4 Wire |
|
- | |||||
| 4B | 140056809035 | Lid, Side |
|
- | |||||
| NI | 5304532946 | Bracket, Multifence, Midnight |
|
$ 3.50 |
