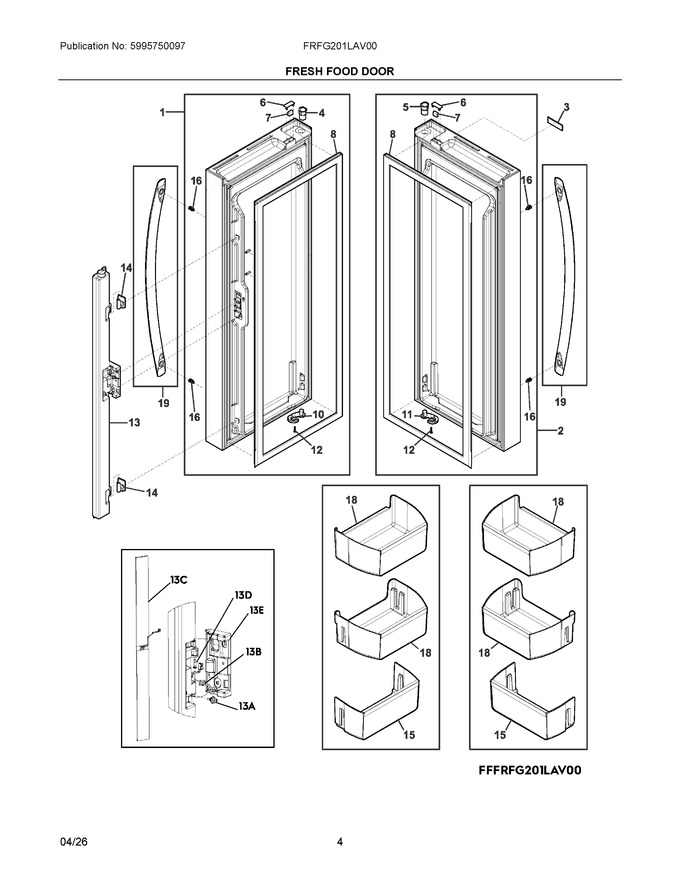

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Freezer Drawer, Baskets
03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140309680795 | Door Assembly Complete, Left Opening, Stainless |
|
- | |||||
| 2 | 140309680787 | Door Assembly Complete, Right Opening, Stainless |
|
- | |||||
| 3 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 4 | 5304529298 | Bearing, Upper, Lh Door |
|
- | |||||
| 5 | 5304529296 | Bearing, Upper, Rh Door |
|
$ 9.14 | |||||
| 6 | 5304526830 | Cover, Sensor Magnet |
|
- | |||||
| 7 | 140026775019 | Sensor, Magnet, Switch, Reed |
|
$ 4.11 | |||||
| 8 | 8119885567 | Gasket, Fresh Food Door, Magnet |
|
- | |||||
| 10 | 140010465163 | Bearing, Door, Lh, Auto Closer |
|
Immediately | $ 5.11 | ||||
| 11 | 140010465148 | Bearing, Door, Auto Closer |
|
$ 6.00 | |||||
| 12 | 808337901 | Screw, Pf Ab Pfz Pf, 3.5x1.27x19 |
|
$ 3.03 | |||||
| 13 | 5304529180 | Mullion Assembly, Flip, Gray, W/heater |
|
Immediately | $ 130.39 | ||||
| 14 | 140013762046 | Hinge, Flip Mullion, Bottom/middle |
|
$ 3.28 | |||||
| 15 | 140288984010 | Bin Door, Lower |
|
- | |||||
| 16 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 11.48 | ||||
| 18 | 140288983012 | Bin Door, Middle |
|
- | |||||
| 19 | 140308989049 | Handle Set Of 2, Assembly, Stainless |
|
- | |||||
| 13A | 8119728023 | Grommet, Mullion |
|
- | |||||
| 13B | 140013719012 | Spring, Flip Mullion |
|
- | |||||
| 13C | 140217415011 | Heater, Mullion |
|
- | |||||
| 13D | 140045805011 | Bearing, Spring, Flip Mullion |
|
- | |||||
| 13E | 140013717024 | Hinge, Flip Mullion, Center |
|
- | |||||
| NIA | 5304519084 | Screw, Flange Pnhd Phl, 8g X 1/2 |
|
- |
