Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304536682 Dispenser Assembly, Water, Interior, W/microswitch Special Order $ 66.64

2 5304519199 Spring, Paddle Assembly In-Stock Immediately $ 6.11

3 5304536683 Paddle, Water Dispenser Special Order $ 12.50

5 140031581121 Tube, Water Valve To Dispenser Appelez-nous -
NI 242200102 Clip, Tubing, 90 Deg Elbow Special Order $ 10.63


    View Diagram in Separate Window     Print Icon   Print Part List

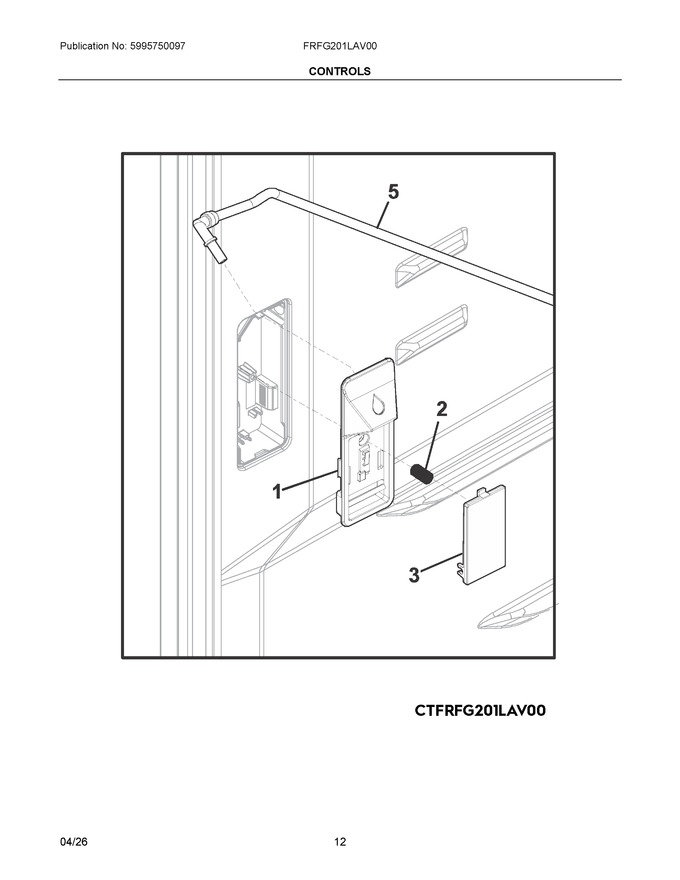

Diagram for FRFG201LAV00
