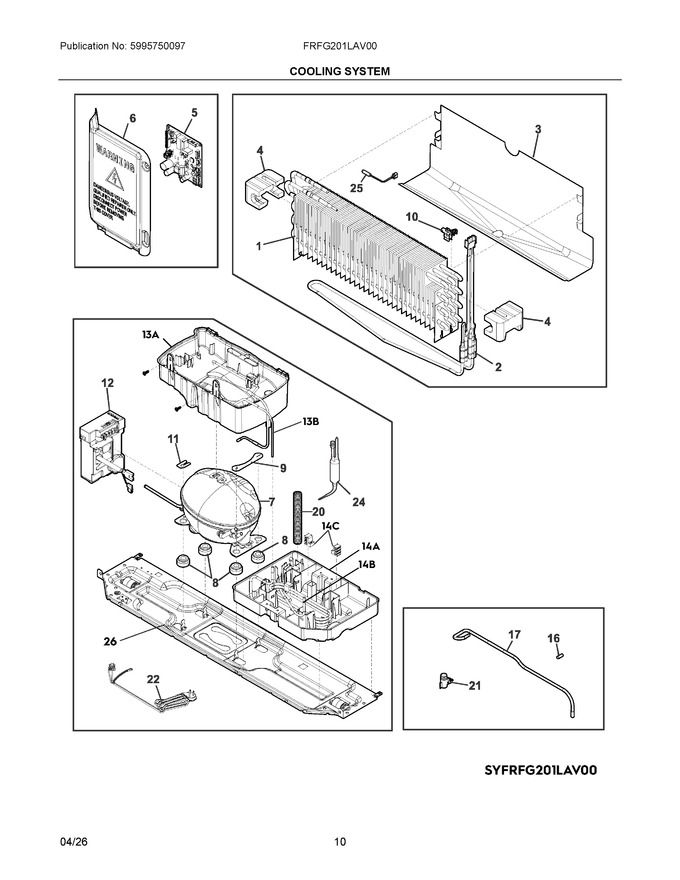

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140040632048		Evaporator Freezer		Appelez-nous	-
2	140010582355		Defrost Heater, Evaporator		Appelez-nous	-
3	140053997015		Trough, Drain, Evaporator		Appelez-nous	-
4	5304529142		Support, Evaporator		Appelez-nous	-
5	973925060958007		Configured Electronic, Power Board, Erf 2004		Appelez-nous	-
6	140014689016		Cover, Main Electronic, Board, Rear		Appelez-nous	-
7	140222839072		Compressor, Inverter, Vmx1113y				$ 249.01
8	811978901		Grommet, Compressor		Appelez-nous	-
9	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 5304534879)				$ 4.19
11	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
12	140231161245		Control, Pcb, Flex Drive, Vmx1113y 115v			Immediately	$ 169.38
16	5304529162		Cap, Tubing				$ 4.55
17	140020522052		Tube, Jumper, Heater		Appelez-nous	-
20	5304529151		Tube, Drain				$ 9.10
21	811976001		Valve Assembly, Drain				$ 9.10
22	5304536756		Cord, Power, Electric Servic				$ 29.68
24	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
25	5304520944		Sensor, Temperature			Immediately	$ 20.74
26	8588078227127		Base Assembly Compressor		Appelez-nous	-
13A	140012625038		Drain Pan, Compressor		Appelez-nous	-
13B	140028303067		Drainage Heater, Tube, Copper		Appelez-nous	-
14A	140012626010		Drain Tray, 276.5x205.3mm		Appelez-nous	-
14B	140100808082		Tube, Heating Element, Copper Drain, Overflow		Appelez-nous	-
14C	140036378010		Spacer, Damper, 3-ways		Appelez-nous	-
NI	5304519110		Screw, Trilob, M3 X 6				$ 3.03
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
NIA	808199001		Screw, Self Tapping, 6 X 20				$ 7.09
NIA	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
