Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303131937 Pnl Manifold Appelez-nous -
2 5303202878 Knob-thermo Appelez-nous -
3 3201081 Knob-top Valve (4) Appelez-nous -
4 3934004 Panel-main Top-almond Appelez-nous -
5 3013818 Rod-main Top Supt. (2) Appelez-nous -
6 08067746 Brkt-main Top Hinge Lh Appelez-nous -
7 08067747 Brkt-main Top Hinge Rh Appelez-nous -
8 5303131115 Pan-burner (4) Special Order $ 15.62

9 5303012700 Grate (4) Appelez-nous -

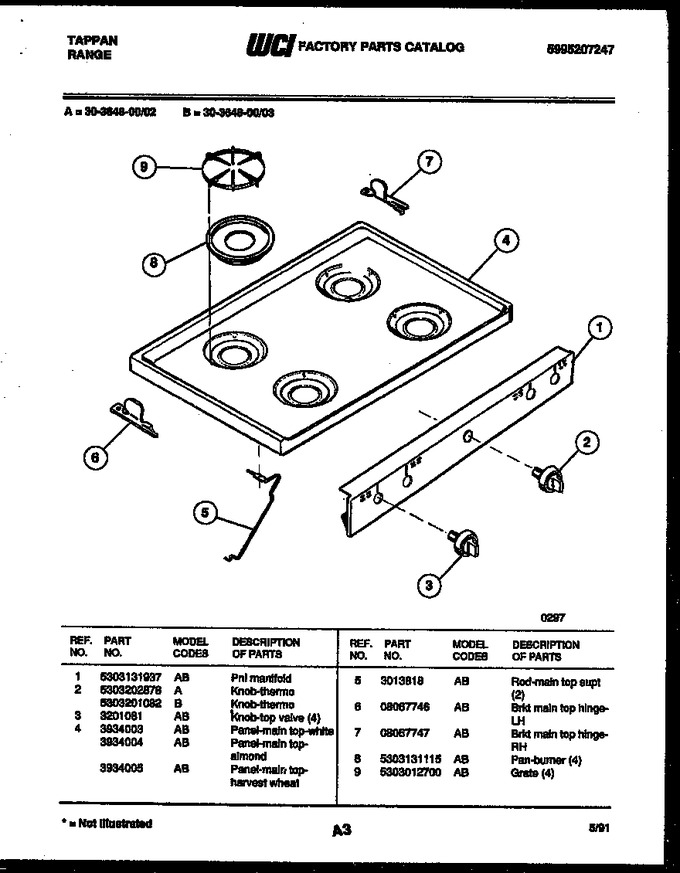

    View Diagram in Separate Window     Print Icon   Print Part List
