02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

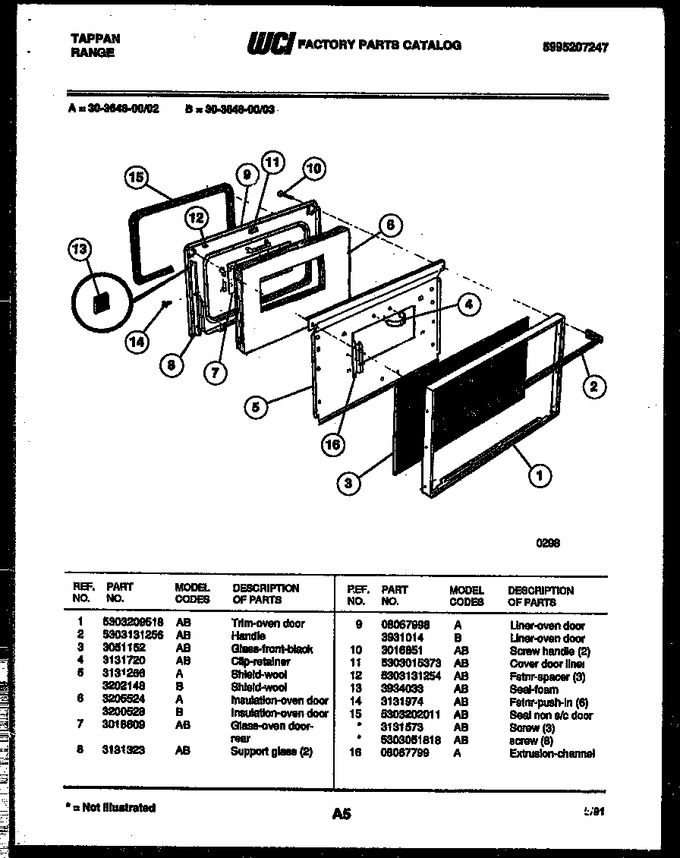

| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 5303131256 | Handle |
|
- | |||||
| 3 | 3051152 | Glass-front, Black |
|
- | |||||
| 4 | 3131720 | Clip, Retainer |
|
- | |||||
| 5 | 3131266 | Shield, Wool |
|
- | |||||
| 6 | 3205524 | Insulation-oven Door |
|
- | |||||
| 7 | 3018609 | Glass-oven Door (rear) |
|
- | |||||
| 8 | 3131323 | Support, Glass (2) |
|
- | |||||
| 9 | 08067998 | Liner-oven Door |
|
- | |||||
| 10 | 3016851 | Screw, Handle (2) |
|
- | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303131254 | Fstnr-spacer (3) |
|
- | |||||
| 13 | 3934033 | Seal, Foam |
|
- | |||||
| 14 | 3131974 | Fstnr, Push In (6) |
|
- | |||||
| 15 | 5303202011 | Seal - Non S/c Door |
|
$ 166.84 | |||||
| 16 | 08067799 | Extrusion Channel |
|
- | |||||
| 15A | 3131573 | Screw (3) (non-illustrated) |
|
- | |||||
| 15B | 5303051818 | Screw (8) (non-illustrated) |
|
- |
