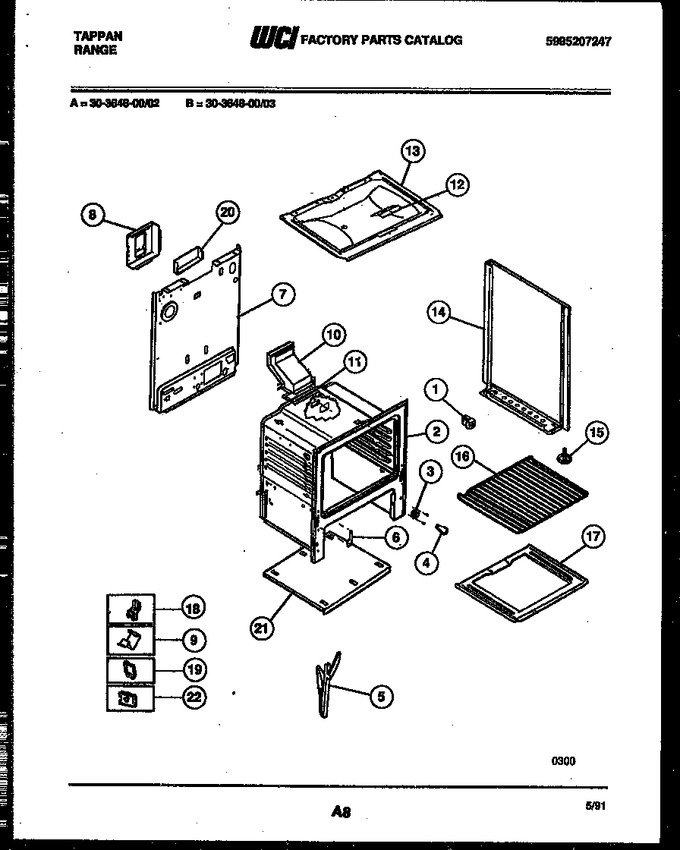

02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer |
|
$ 3.62 | |||||
| 3 | 3014073 | Socket-oven Light |
|
- | |||||
| 4 | 5303208582 | Light Bulb |
|
- | |||||
| 5 | 5303131569 | Channel-door Hinge (2) |
|
- | |||||
| 6 | 3131570 | Cover-hinge Cutout (2) |
|
$ 7.35 | |||||
| 7 | 3203082 | Back-main |
|
- | |||||
| 8 | 3131660 | Shield, Rear Wall |
|
- | |||||
| 9 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 10 | 3131904 | Flue |
|
- | |||||
| 11 | 08067965 | Gasket-flue |
|
- | |||||
| 12 | 08067757 | Cover Plate |
|
- | |||||
| 13 | 3011597 | Burner Box |
|
- | |||||
| 14 | 5303131227 | B/s Pnl-white-rh |
|
- | |||||
| 14 | 3131454 | B/s Pnl Almond Rh |
|
- | |||||
| 14 | 3131477 | B/s Pnl-harvest Wheat |
|
- | |||||
| 15 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 16 | 5303131973 | Rack, Oven |
|
- | |||||
| 17 | 5303212540 | Bottom, Oven |
|
- | |||||
| 18 | 5303011805 | Clip, Thermo |
|
- | |||||
| 19 | 08067962 | Fstnr, Wire |
|
- | |||||
| 20 | 3131348 | Shield-flue |
|
- | |||||
| 21 | 5303270160 | Base-broil |
|
- | |||||
| 22 | 3203010 | Fstnr-hinge (Replaces: 5303012323) |
|
$ 14.89 | |||||
| *42658 | 3203541 | Insulation-back |
|
- | |||||
| *42658 | 5304534377 | Cord, Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| *42658 | 3017142 | Insulation-oven Wrap |
|
$ 193.50 | |||||
| *42659 | 3014226 | Support-oven Bttm |
|
- | |||||
| *42659 | 5303015372 | Cover, Front Main |
|
- | |||||
| *42659 | 08067961 | Fastener-power Cord |
|
- | |||||
| *42659 | 3018615 | Plate-oven Light |
|
- | |||||
| *42659 | 3131244 | Cover, Power Cord |
|
- | |||||
| *42659 | 3131903 | Bumper |
|
$ 55.36 | |||||
| *42660 | 316282700 | Screw-oven Bttm. (Replaces: 3131732) |
|
$ 9.93 | |||||
| *42660 | 19111220408 | Diagram-wiring-(not For Purchase) |
|
- | |||||
| *42660 | 3015371 | Cover-burner Box |
|
- | |||||
| 14A | 3131453 | B/s Pnl (almond) Lh |
|
- | |||||
| 14A | 3131478 | B/s Pnl-harvest Wheat-lh |
|
- | |||||
| 14A | 3131257 | B/s Pnl-white Lh |
|
- | |||||
| 15A | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- |
