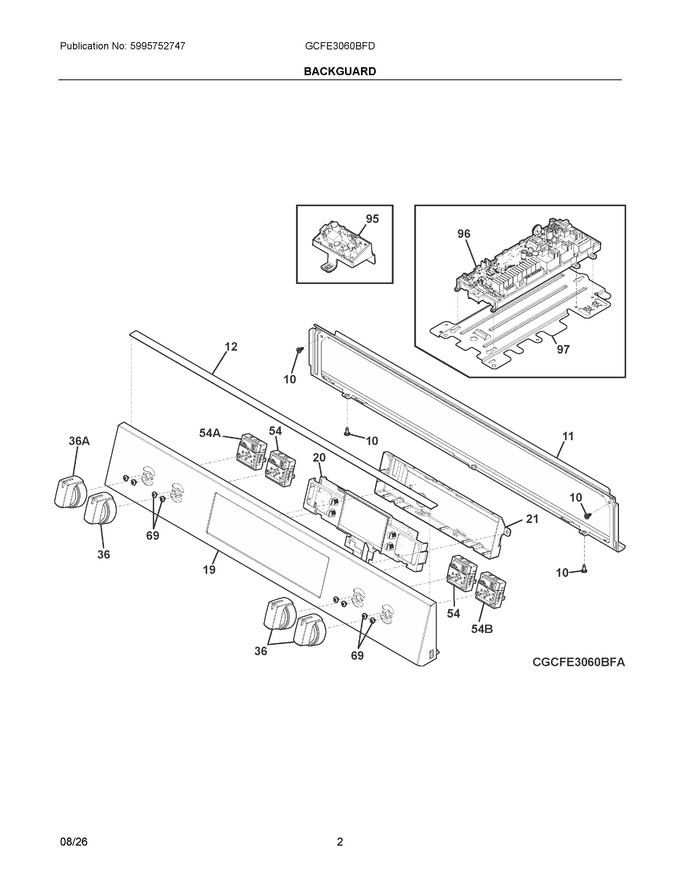

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304534089		Seal, Maintop Panel		Appelez-nous	-
19	5304528391		Control Panel, Assembly, Stainless				$ 167.33
20	5304538605		Control-eoc Ui730 E Sc Fcf			Immediately	$ 241.72
21	5304534688		Cover, Control				$ 29.28
36	5304509064		Knob, Stainless				$ 66.74
54	5304522966		Switch, Infinite, Single			Immediately	$ 78.11
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
95	5304534730		Pc Board,asy,backlit Powe -pur				$ 86.95
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 126.93
97	5304528372		Bracket, Ovc Board				$ 11.68
36A	5304528710		Knob, Infinite Switch, Dual				$ 73.10
54A	140173679014		Switch, Infinite, Dual			Immediately	$ 33.31
54B	140173680012		Switch, Infinite, Tboil			Immediately	$ 34.36
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304534087		Harness, Wiring, Macs Panel, To Ui				$ 51.26
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NIA	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
