SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Schematic


07 - Wiring Diagram

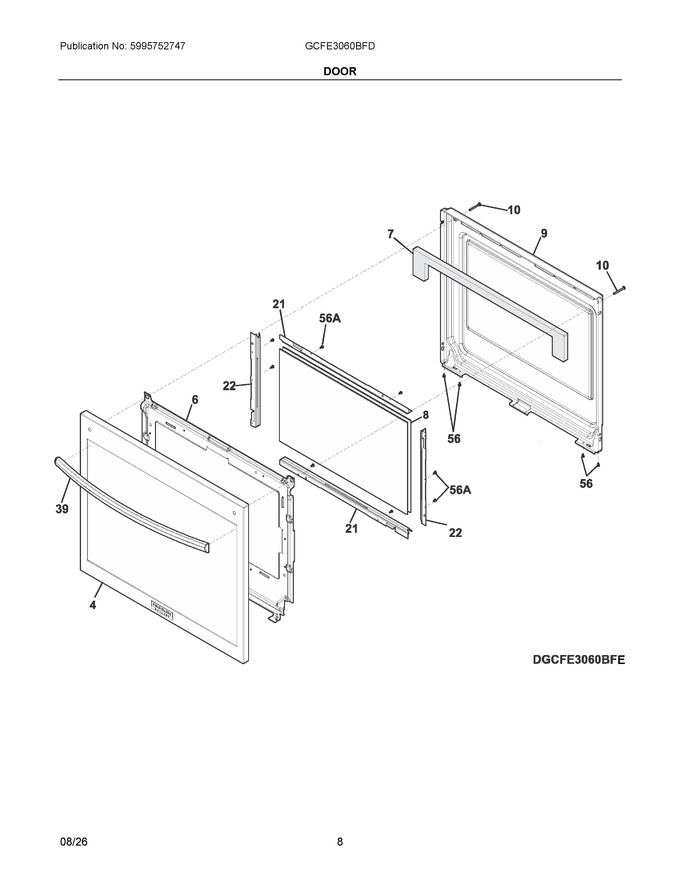

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304528492		Door Assembly, Outer, Steel/glass, Stainless, W/top Cap			Immediately	$ 197.21
6	5304528103		Shield, Wool				$ 89.82
7	140299178024		Insulation, Top, Door		Appelez-nous	-
8	140163079100		Glass-door Inner Xl+ Ex0   (Replaces: 5304536639)				$ 62.12
9	5304533466		Liner, Oven Door, Midnight Black			Immediately	$ 117.34
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
21	5304528104		Bracket, Glass Pack, Horizontal		Appelez-nous	-
22	5304528105		Bracket, Glass Pack, Vertical				$ 10.25
39	140067504096		Handle, Door, Stainless				$ 53.48
56	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
56A	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
56A	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	316483102		Label, Anti-tip				$ 3.56

    View Diagram in Separate Window       Print Part List
