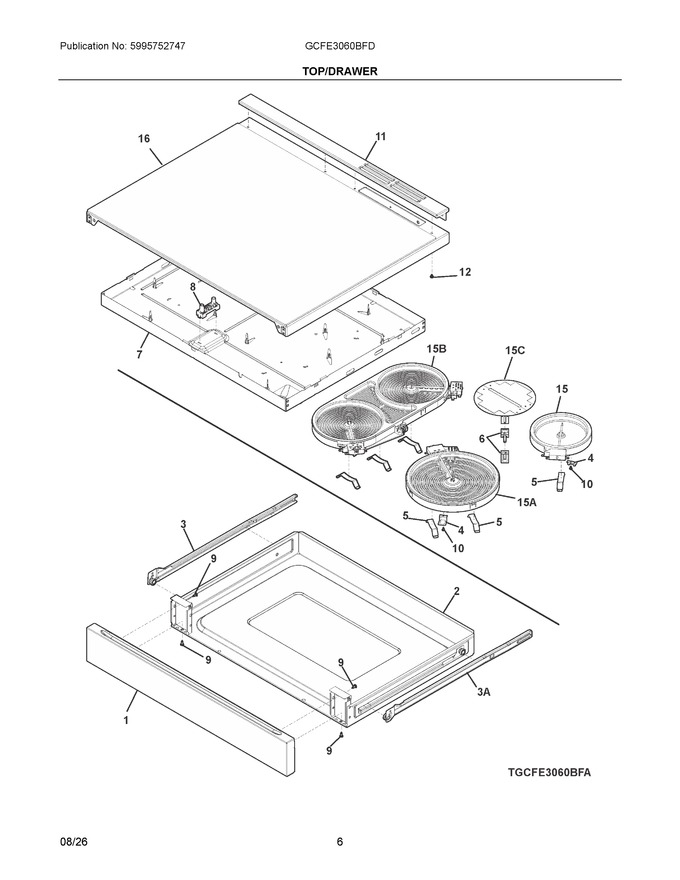

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526300		Panel, Drawer, Stainless, Outer				$ 103.34
2	5304526448		Drawer Assembly, Utility, W/inner Glides			Immediately	$ 154.85
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
4	387683300		Bracket, Surface Element			Immediately	$ 13.42
5	5304526627		Spring, Element Support			Immediately	$ 8.19
6	5304528474		Clip, Spring, Element				$ 7.59
7	5304533871		Burner Box		Appelez-nous	-
8	808608804		Spark Module			Immediately	$ 76.06
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304534686		Trim, Rear Vent, Black				$ 97.16
12	5304533410		Screw, M4.2x7x1.06, Black		Appelez-nous	-
15	140283003014		Element, Radiant, 6", 1200w				$ 53.23
16	5304534675		Maintop, Assembly, Black				$ 173.74
15A	8583165300028		Element, Surface, 9", 3200w, Turbo Boil				$ 89.90
15B	140204968022		Element, Radiant, 4400w, Bridge				$ 119.00
15C	140273621015		Element, Radiant, 100w, Warmer			Immediately	$ 35.77
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
