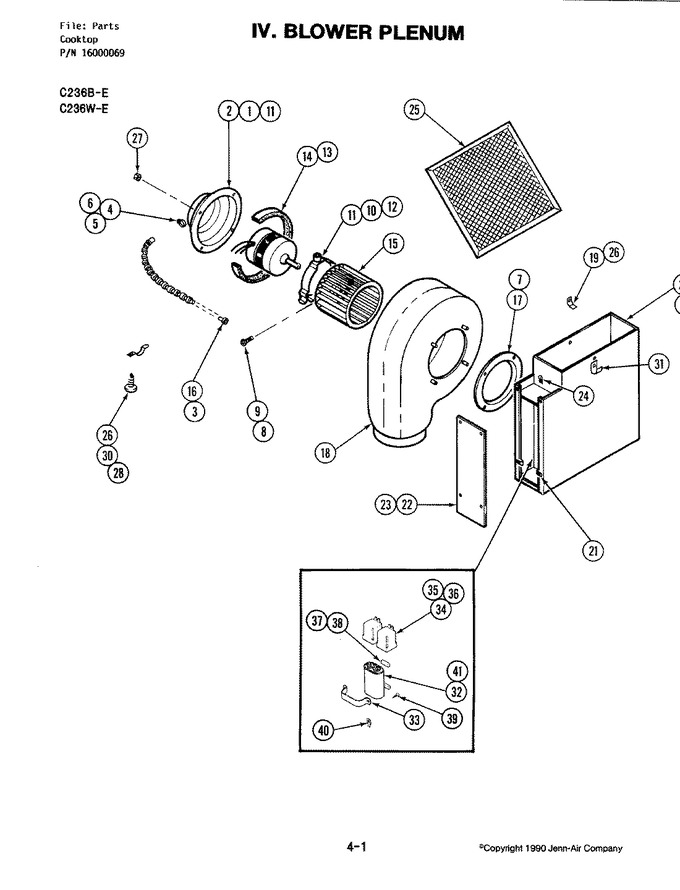

01 - Blower Plenum
02 - Burner Box
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-03521A | Motor Cover Assembly (Replaces: 700027) | 11 |
|
$ 208.41 | ||||
| 2 | Y704968 | Cover, Motor | 11 |
|
- | ||||
| 3 | Y705155 | Conduit, Metal | 11 |
|
- | ||||
| 4 | Y705154 | Connector | 11 |
|
- | ||||
| 5 | 715780 | Clamp, Cable | 11 |
|
- | ||||
| 6 | Y707335 | Clip | 11 |
|
- | ||||
| 7 | 702889 | Locknut Cap, W/nylon Insert | 11 |
|
- | ||||
| 8 | 707161 | Nut | 11 |
|
- | ||||
| 9 | Y707402 | Screw | 11 |
|
- | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 11 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 12 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 13 | Y705055 | Motor (220 Volts) | 11 |
|
- | ||||
| 14 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 15 | 703998 | Wheel, Blower | 11 |
|
- | ||||
| 16 | 708185 | Bushing | 11 |
|
- | ||||
| 17 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 11 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 11 |
|
- | ||||
| 20 | 712623 | Pelnum Weld Assembly | 11 |
|
- | ||||
| 21 | 701958 | Clip, Tinnerman | 11 |
|
- | ||||
| 22 | Y700464 | Plate, Cover | 11 |
|
- | ||||
| 23 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 | ||||
| 24 | Y707831 | Clip | 11 |
|
- | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 707929) | 11 |
|
Immediately | $ 44.51 | |||
| 26 | WP71001171 | Screw (Replaces: Y701379) | 11 |
|
$ 6.26 | ||||
| 27 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 28 | 712310 | Tinnerman | 11 |
|
- | ||||
| 29 | WP71001171 | Screw (Replaces: Y701379) | 11 |
|
$ 6.26 | ||||
| 30 | WP71001171 | Screw (Replaces: Y707745) | 11 |
|
$ 6.26 | ||||
| 31 | 712254 | Clamp, Cable | 11 |
|
- | ||||
| 32 | 705056 | Capacitor | 11 |
|
- | ||||
| 33 | 702012 | Clamp | 11 |
|
- | ||||
| 34 | 703530 | Relay, Fan | 11 |
|
- | ||||
| 35 | M0282005 | Nut, Hex (Replaces: 701719) | 11 |
|
$ 7.07 | ||||
| 36 | Y707150 | Screw | 11 |
|
- | ||||
| 37 | Y705274 | Insulator, Splice Cap | 11 |
|
- | ||||
| 38 | 715938 | Pad, Spacer | 11 |
|
- | ||||
| 39 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 40 | Y700834 | Clip | 11 |
|
- | ||||
| 41 | Y705273 | Connector, Crimp | 11 |
|
- | ||||
| 41 | 702631 | Wire, Brown | 11 |
|
- | ||||
| 41 | 703518 | Wire, Red | 11 |
|
- | ||||
| 41 | 703526 | Wire, Blue | 11 |
|
- | ||||
| 41 | 703959 | Wire, Green | 11 |
|
- |
