SELECT A DIAGRAM

01 - Blower Plenum


02 - Burner Box


03 - Escutcheon Assembly

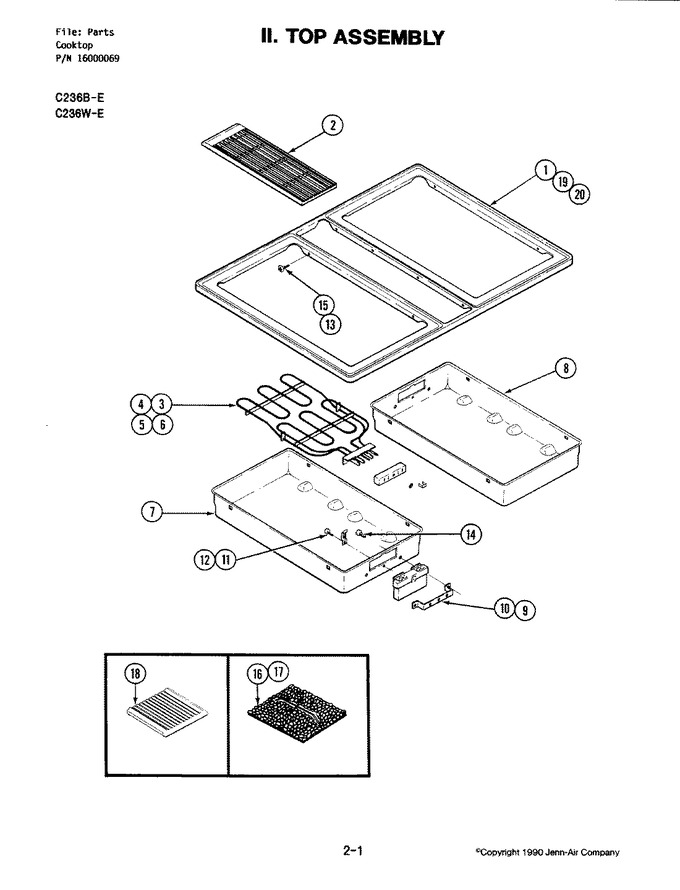

04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y704984		Top, Range (blk)	11	Appelez-nous	-
1	Y04100404		Top, Black	13	Appelez-nous	-
2	703926		Grill, Air (blk)	11	Appelez-nous	-
3	WP5700M426-60		Element Complete, 240v   (Replaces: Y712430)	11			$ 382.26
4	WPY708730		Block, Terminal   (Replaces: Y708730)	11		Immediately	$ 87.44
5	Y700862		Washer	11	Appelez-nous	-
6	Y700450		Clip, Shunt	11			$ 9.51
7	712621		Wire Kit	11	Appelez-nous	-
7	Y712203		Wire, Violet	11	Appelez-nous	-
7	712196		Wire, Orange	11	Appelez-nous	-
7	701955		Pan, Grill (lt)	11	Appelez-nous	-
7	Y712200		Wire, Yellow	11	Appelez-nous	-
7	Y712197		Wire, Brown	11	Appelez-nous	-
8	WP5708M007-60		Wire, Yellow   (Replaces: Y712201)	11			$ 117.23
8	712620		Wire Kit	11	Appelez-nous	-
8	Y712199		Wire, Brown	11	Appelez-nous	-
8	Y701956		Pan, Grill (rt)	11	Appelez-nous	-
8	WP5708M008-60		Wire, Violet   (Replaces: Y712202)	11			$ 87.19
9	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	11		Immediately	$ 96.61
10	Y702698		Bracket	11	Appelez-nous	-
11	74004835		Clip   (Replaces: Y702699)	11			$ 11.37
12	00489128		Screw   (Replaces: Y705026)	11			$ 773.97
13	WP74003976		Washer   (Replaces: 702592)	11			$ 6.47
14	WP12990527		Screw   (Replaces: Y708955)	11		Immediately	$ 7.15
15	W11233072		Screw   (Replaces: Y707347)	11		Immediately	$ 12.62
16	708929		Plate, Rock	11	Appelez-nous	-
17	700819		Support, Rock Plate	11			$ 71.81
18	703905		Grate, Grill	11	Appelez-nous	-
19	11008801		Wire, Green (ground)   (Replaces: 703991)	11			$ 56.50
20	WP71001171		Screw   (Replaces: Y701379)	11			$ 6.26

    View Diagram in Separate Window       Print Part List
