SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box

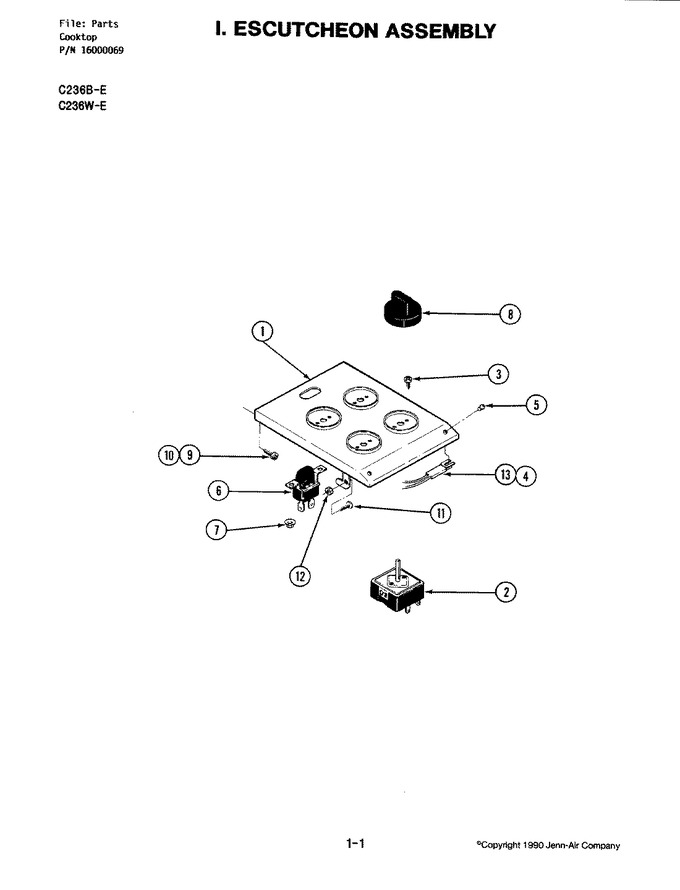

03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704210 | Escutcheon | 11 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 98.55 | |||
| 3 | 702935 | Duct, Flexible | 11 |
|
- | ||||
| 4 | 705294 | Light, Pilot (left) | 11 |
|
- | ||||
| 5 | 703927 | Lens | 11 |
|
- | ||||
| 6 | Y704573 | Switch, Fan (blk) | 11 |
|
- | ||||
| 7 | Y705023 | Palnut | 11 |
|
- | ||||
| 8 | WPY703899 | Knob, Switch (blk) (Replaces: Y703899) | 11 |
|
Immediately | $ 21.09 | |||
| 9 | W11233072 | Screw (Replaces: Y705007) | 11 |
|
Immediately | $ 12.62 | |||
| 10 | Y700834 | Clip | 11 |
|
- | ||||
| 11 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 6.07 | ||||
| 12 | WP488130 | Nut (Replaces: Y701396) | 11 |
|
$ 6.27 | ||||
| 13 | 703516 | Wire, Black | 11 |
|
- | ||||
| 13 | 705295 | Light, Pilot(black) | 11 |
|
- | ||||
| 13 | 703807 | Wire, Red | 11 |
|
- |
