SELECT A DIAGRAM

01 - Cover

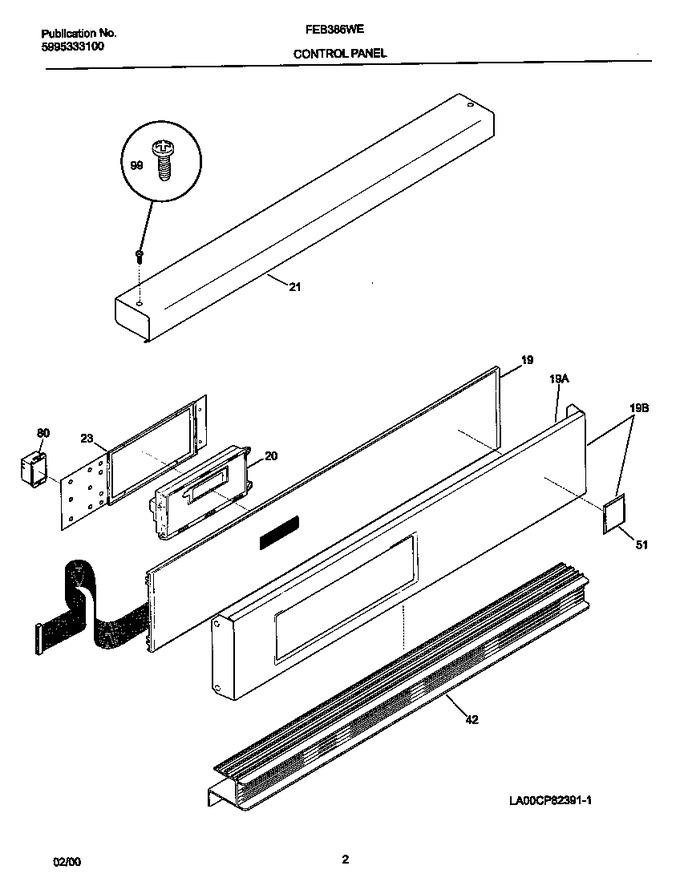

02 - Control Panel


03 - Body


04 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318041702		Panel-decorative, Stainless, With Nameplate		Appelez-nous	-
19	318030205		Panel-control, Black		Appelez-nous	-
20	318010700CP		Clock/timer, Eoc   (Replaces: 318010700)		Appelez-nous	-
21	318029700		Trim-top, Stainless Steel		Appelez-nous	-
23	318111602		Bracket-timer		Appelez-nous	-
42	318027409		Trim-vent, Black		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
80	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
99	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*10080	3201861		Screw, 6 X 3/8				$ 0.76
*10081	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10082	5303300414		Spacer, Cork & Rubber				$ 13.18

    View Diagram in Separate Window       Print Part List
