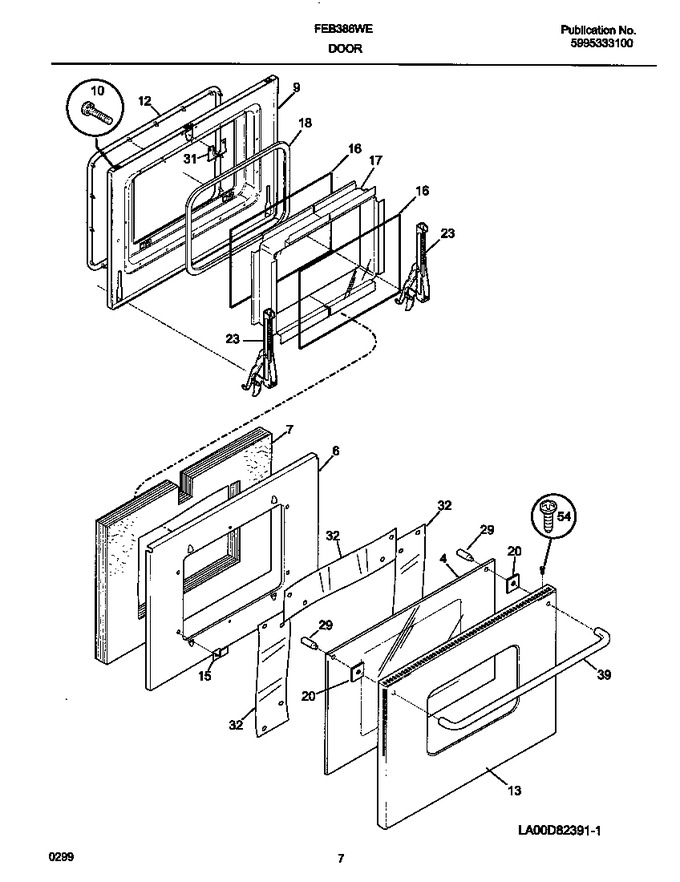

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318041210		Glass-oven Door, Black, Outer				$ 199.55
6	318056811		Shield-air Wash		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048607		Liner-oven Door		Appelez-nous	-
10	5303316953		Screw-handle, (2)		Appelez-nous	-
12	318053103		Seal-oven Door			Immediately	$ 150.03
13	318009210		Panel-oven Door,stainless		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
15	318091102		Bracket-glass,(3)		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
23	5303320452		Hinge		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
32	318056700		Deflector, 4.5`` X 16.6``		Appelez-nous	-
32	318056701		Deflector, 4`` X 18.43``		Appelez-nous	-
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
60	5303316982		Foam Seal,seal ,(3)		Appelez-nous	-
*10083	154079601		Nut   (Replaces: 3201885)				$ 0.41
*10084	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*10085	5303300414		Spacer, Cork & Rubber				$ 13.18
*10086	5303323277		Screw (8-18x13/32)				$ 8.66
