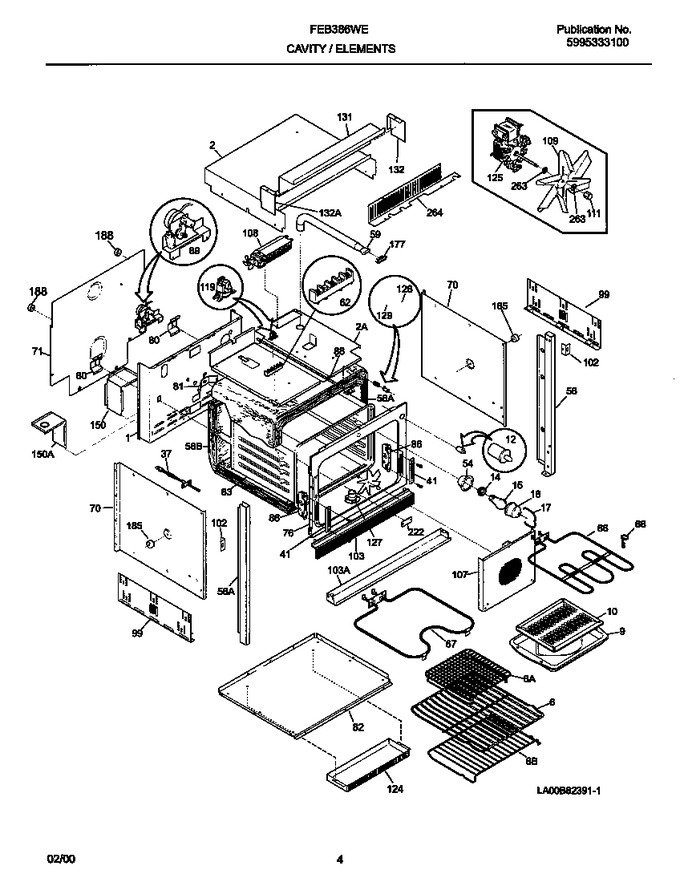

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Body
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066402 | Back-main |
|
- | |||||
| 2 | 318071703 | Shield-oven Top |
|
- | |||||
| 2 | 318102101 | Shield-oven Top |
|
- | |||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025401) |
|
Immediately | $ 148.70 | ||||
| 6 | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6 | 318345205 | Rack-oven (Replaces: 318025301) |
|
Immediately | $ 138.78 | ||||
| 9 | 318138800 | Pan-broiler |
|
- | |||||
| 10 | 318126400 | Insert-broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 5304400195 | Retainer Lenz |
|
- | |||||
| 20 | 318121902 | Bracket |
|
$ 47.03 | |||||
| 37 | 316217002 | Probe-oven Temp (Replaces: 316111203) |
|
Immediately | $ 61.23 | ||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 56 | 318029100 | Trim-bodyside, Stainless, Outer, Lh |
|
- | |||||
| 58 | 316082300 | Nameplate, Black |
|
- | |||||
| 58 | 5303310539 | Insulation Wrapper |
|
- | |||||
| 58 | 5303310538 | Insulation Oven Back |
|
- | |||||
| 58 | 5303316994 | Insulation, Oven Vent |
|
- | |||||
| 59 | 318072504 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5304403015 | Support-element |
|
$ 35.04 | |||||
| 70 | 5303300142 | Shield-insulation |
|
- | |||||
| 71 | 318071201 | Shield-wire |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 82 | 318072302 | Shield-insulation |
|
- | |||||
| 83 | 318089609 | Liner-oven Assy,comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 318120710 | Switch-door,(2) |
|
- | |||||
| 99 | 318055420 | Support-adjustable |
|
$ 44.73 | |||||
| 102 | 318090900 | Support-oven Front,(2) |
|
- | |||||
| 103 | 318028500 | Trim,base ,black |
|
- | |||||
| 103 | 318027700 | Trim,base ,stainless ,outer |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 5303311203 | Fan Blade |
|
$ 42.84 | |||||
| 111 | 5303311205 | Nut-fan Retainer |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076903 | Box-vent |
|
- | |||||
| 125 | 5303311202 | Motor-convection |
|
$ 114.07 | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102301 | Cover-control Housing |
|
- | |||||
| 132 | 318101701 | End-cover, Control Hsg, Lh |
|
- | |||||
| 132 | 318101700 | End-cover, Control Hsg, Rh |
|
- | |||||
| 150 | 318072204 | Bracket-support, Lh |
|
- | |||||
| 150 | 318072205 | Bracket-support, Rh |
|
$ 72.35 | |||||
| 177 | 318053800 | Gasket Vent |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 188 | 08007817 | Spacer, (2) |
|
- | |||||
| 222 | 318080000 | Plate,oven Temp Probe |
|
- | |||||
| 263 | 5303322885 | Spacer |
|
- | |||||
| 264 | 318143813 | Xx<hidden Wires Shie |
|
- | |||||
| *10087 | 3015722 | Clip-wire |
|
- | |||||
| *10088 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| *10089 | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| *10090 | 3201861 | Screw, 6 X 3/8 |
|
$ 0.76 | |||||
| *10091 | 154079601 | Nut (Replaces: 3201885) |
|
$ 0.41 | |||||
| *10092 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *10093 | 5303302745 | Screw,10-16x1-1/8 ,square Drive |
|
$ 8.35 | |||||
| *10094 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *10095 | 5303308449 | Fastener |
|
- | |||||
| *10096 | 5303311528 | Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black |
|
- | |||||
| *10097 | 5303323136 | Screw-ground |
|
- | |||||
| *10098 | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| *10099 | 5303324184 | Screw-8 X 5/16 |
|
Immediately | $ 14.18 | ||||
| *10100 | 5304407813 | Washer |
|
- | |||||
| *10101 | 318078511 | Box & Wires Assy |
|
- | |||||
| *10102 | 318096002 | Motor-latch |
|
- |
