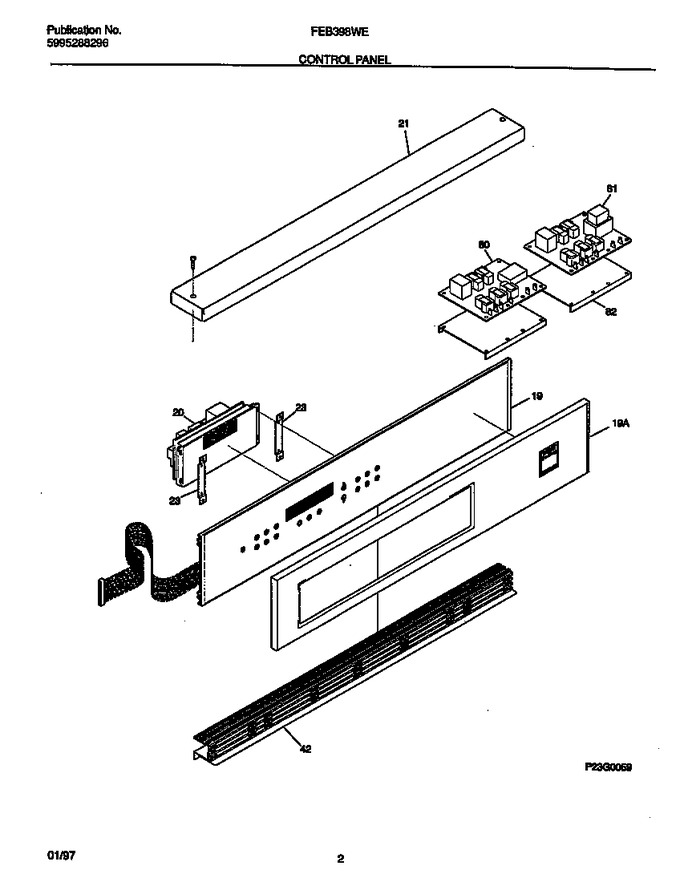

02 - Control Panel


03 - Lower Body


04 - Upper Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030207		Panel-control		Appelez-nous	-
19	318041705		Nameplate		Appelez-nous	-
21	318029700		Trim-top, Stainless Steel		Appelez-nous	-
42	318027408		Trim-vent		Appelez-nous	-
80	318022001		Board-relay			Immediately	$ 489.91
81	318022002		Board-relay, Transformer				$ 482.74
82	318055410		Bracket-relay(2)		Appelez-nous	-
*71680	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*71681	5303300414		Spacer, Cork & Rubber				$ 13.18
*71682	5303311528		Screw, Oval Hd, 6-20 X 5/8, Black		Appelez-nous	-
*71683	5303317199		Support, Snap-in, (16)				$ 36.75
20A	318010501		Clock/timer, Eoc				$ 666.75
20B	5303288566		Screw-clock (not Illustrated)   (Replaces: 5303320848)				$ 2.12
23A	318015110		Bracket-clock Mtg		Appelez-nous	-
23B	5303300265		Screw, 8-18 X 1/2 (not Illustrated)				$ 15.17
