View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Lower Body

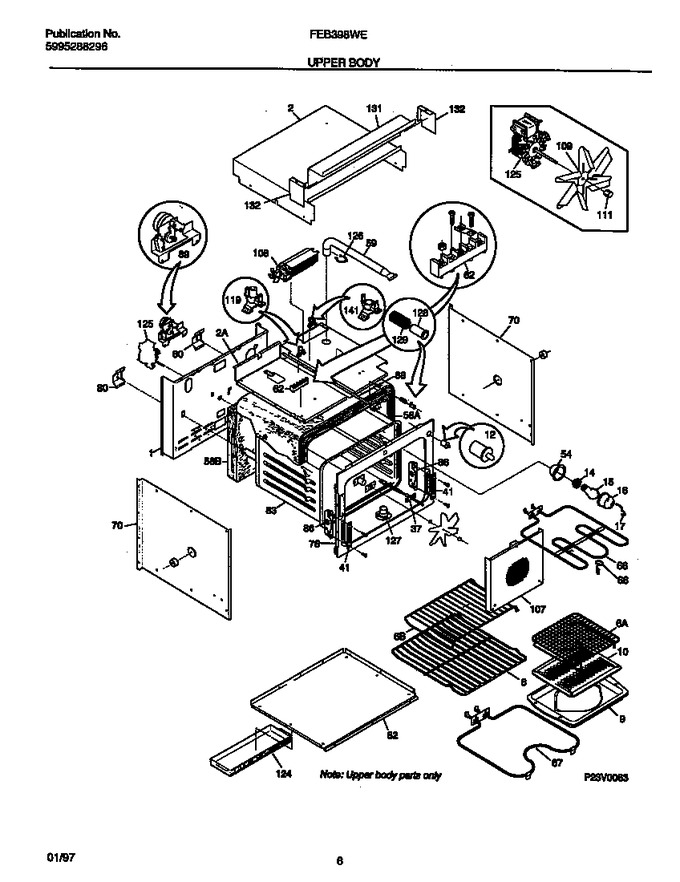

04 - Upper Body
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303310527 | Back-main |
|
- | |||||
| 2 | 318102100 | Shield-oven Top |
|
- | |||||
| 2 | 318071701 | Shield-oven Top |
|
- | |||||
| 6 | 5303311206 | Rack, Broiler Pan |
|
- | |||||
| 6 | 318025314 | Rack-oven (Replaces: 5303310522) |
|
Immediately | $ 148.70 | ||||
| 6 | 318025314 | Shelf-oven (Replaces: 318025401) |
|
Immediately | $ 148.70 | ||||
| 9 | 5303317977 | Pan,broiler |
|
- | |||||
| 10 | 5303317976 | Insert,broiler Pan |
|
- | |||||
| 12 | 318394803 | Switch-light (Replaces: 318089910) |
|
Immediately | $ 44.23 | ||||
| 14 | 316116400 | Socket-light/lamp, Large/small, Oven (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 15 | 3201908 | Lamp-oven Light, Large/small, Oven |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens, Large/small, Oven (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens, Large/small, Oven |
|
- | |||||
| 37 | 5303208888 | Probe-oven Temp |
|
- | |||||
| 41 | 5303310526 | Cover-hinge Cutout |
|
$ 83.00 | |||||
| 54 | 5303310514 | Housing-oven Light |
|
- | |||||
| 58 | 5303310539 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303310538 | Insulation, Oven Wrapper |
|
- | |||||
| 66 | 318255605 | Element-broil (Replaces: 5303310513) |
|
Immediately | $ 192.78 | ||||
| 67 | 318255006 | Element-bake (Replaces: 5303310512) |
|
Immediately | $ 185.14 | ||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 76 | 318056202 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 318072301 | Shield-oven Bottom |
|
- | |||||
| 83 | 5303320847 | Liner-oven, Comp. |
|
- | |||||
| 86 | 5303310524 | Channel-hinge |
|
- | |||||
| 88 | 5303311222 | Rod-latch |
|
$ 129.19 | |||||
| 89 | 5303317196 | Motor-latch/lock |
|
- | |||||
| 107 | 318119600 | Cover-fan |
|
- | |||||
| 108 | 318073001 | Motor-fan |
|
- | |||||
| 109 | 318137400 | Fan Blade |
|
- | |||||
| 119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| 124 | 318076901 | Box-vent |
|
- | |||||
| 125 | 5303311202 | Motor-convection (Replaces: 318137100) |
|
$ 114.07 | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 318317100 | Adapter Assy (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318102300 | Cover-control Housing |
|
- | |||||
| 141 | 318005100 | Thermostat-safety |
|
- | |||||
| *71691 | 318055410 | Bracket-side,adjustable ,(2) |
|
- | |||||
| *71692 | 318086200 | Retainer-plate |
|
- | |||||
| *71693 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| *71694 | 318078507 | Box & Wires Assy |
|
- | |||||
| 111A | 318137700 | Nut-fan Retainer |
|
- | |||||
| 111B | 318137600 | Spacer (not Illustrated) |
|
- | |||||
| 132A | 318101800 | End-cover,control Hsg ,rh |
|
- | |||||
| 132B | 318101801 | End-cover,control Hsg ,lh |
|
- | |||||
| 59A | 5303320844 | Tube,oven Vent |
|
- | |||||
| 59B | 5303320845 | Washer-oven Vent (not Illustrated) |
|
- | |||||
| 62A | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 62B | 316205500 | Nut, Hex, 10-32 (not Illustrated) (Replaces: 5303308427) |
|
$ 11.34 | |||||
| 70A | 5303300142 | Shield-insulation |
|
- | |||||
| 70B | 318531800 | Spacer-oven Shield (not Illustrated) (Replaces: 318014700) |
|
$ 12.76 |
