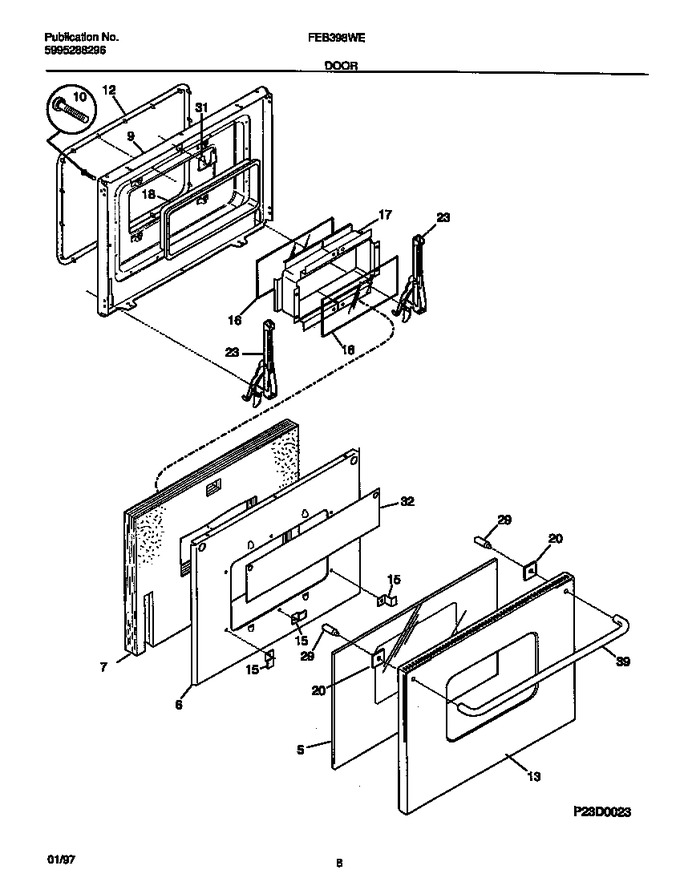

04 - Upper Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	318041210		Glass-oven Door, Black, Outer				$ 199.55
6	318056811		Shield-air Wash		Appelez-nous	-
7	318106001		Insulation-door		Appelez-nous	-
9	318048603		Liner-oven Door		Appelez-nous	-
10	5303316953		Screw-handle, (2)		Appelez-nous	-
12	318053103		Seal-oven Door   (Replaces: 5303311152)			Immediately	$ 150.03
13	318009210		Panel-oven Door,stainless		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
16	318041603		Glass-oven Door,inner ,(2)				$ 95.24
17	318042102		Spacer-glass		Appelez-nous	-
18	318053001		Seal-window		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065100		Latch-door		Appelez-nous	-
39	318039801		Handle,door ,stainless Steel ,oven		Appelez-nous	-
*71695	5303212886		Tape-inner Door		Appelez-nous	-
*71696	5303300414		Spacer, Cork & Rubber				$ 13.18
*71697	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*71698	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*71699	5303316982		Tape, Seal, (3)		Appelez-nous	-
23A	5303320452		Hinge		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
23C	5303300265		Screw, 8-18 X 1/2 (not Illustrated)				$ 15.17
32A	318056700		Deflector, 4.5`` X 16.6``		Appelez-nous	-
32B	318056701		Deflector, 4`` X 18.43`` (not Illustrated)		Appelez-nous	-
