SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

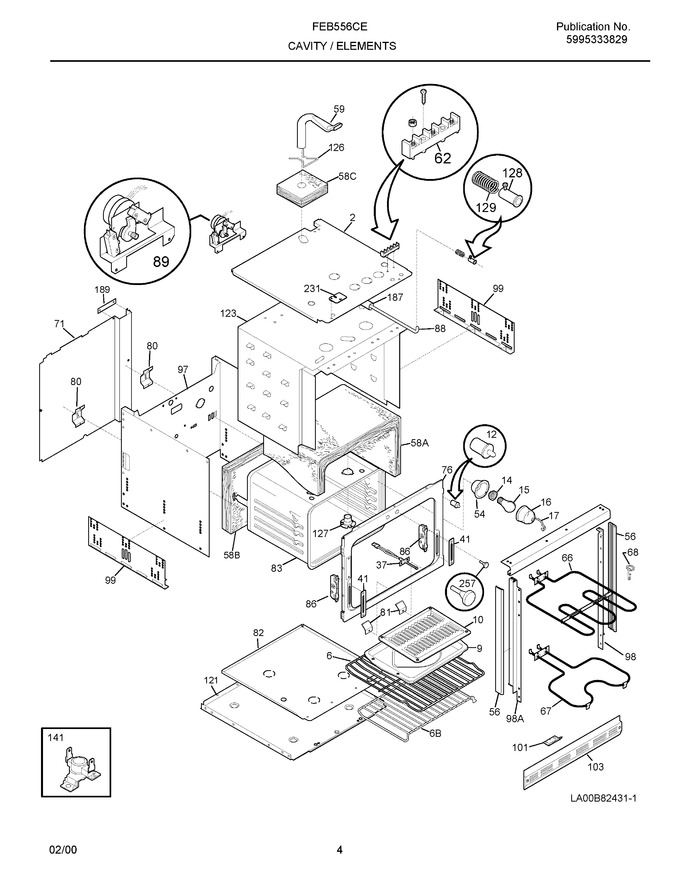

03 - Cavity/elements


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303298946		Shield Oven-top		Appelez-nous	-
6	5303299366		Rack-oven		Appelez-nous	-
9	5303317977		Pan-broiler		Appelez-nous	-
10	5303317976		Insert Broiler Pan		Appelez-nous	-
12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer-lens		Appelez-nous	-
37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
56	5303298951		Trim-bodyside Black		Appelez-nous	-
59	318072507		Tube-oven Vent		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
66	5303322963		Element-broil		Appelez-nous	-
67	5303323865		Element-bake		Appelez-nous	-
68	5304403015		Support-element				$ 35.04
71	318071111		Shield-wire		Appelez-nous	-
76	318056139		Front-oven		Appelez-nous	-
80	5303301261		Spring-oven		Appelez-nous	-
81	5303323710		Bracket-oven		Appelez-nous	-
82	5303305035		Shield-insulation Bottom		Appelez-nous	-
83	318089508		Liner-oven Assy		Appelez-nous	-
86	5303310524		Channel-hinge		Appelez-nous	-
88	318118903		Rod-latch		Appelez-nous	-
89	318095903		Motor-latch/lock		Appelez-nous	-
97	318066602		Wrapper-back & Sides		Appelez-nous	-
98	318029322		Trim Side Inner Rh		Appelez-nous	-
99	5303299686		Support-adjustable		Appelez-nous	-
101	318039511		Bracket-trim (black)		Appelez-nous	-
103	318028710		Trim-base Black				$ 129.83
121	318145001		Wrapper-base		Appelez-nous	-
123	318071433		Shield-insulation Top & Sides		Appelez-nous	-
126	3016303		Clip-insulator Retainer		Appelez-nous	-
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
141	5303300421		Thermostat-safety		Appelez-nous	-
187	318013501		Tube (rod-latch)		Appelez-nous	-
189	318042500		Retainer Plate		Appelez-nous	-
231	5303300421		Cover-capillary		Appelez-nous	-
257	3131903		Plug				$ 55.36
58A	5304409957		Insulation Wrapper		Appelez-nous	-
58B	3019048		Insulation Oven Back		Appelez-nous	-
58C	5303311220		Insulation Oven Vent		Appelez-nous	-
6B	5303305676		Shelf-oven		Appelez-nous	-
98A	318029323		Trim Side Inner Lh		Appelez-nous	-
NI	5303302745		Screw, 10-16 X 1 1/8, Black				$ 8.35
NI	5303304015		Washer, Padded		Appelez-nous	-
NI	08002868		Screw, 10-24 X 1/2				$ 14.18
NI	3201881		Lockwashed		Appelez-nous	-
NI	3018802		Clip-cable		Appelez-nous	-
NI	3051070		Screw, 10-24 X 7/16		Appelez-nous	-
NI	5303323137		Screw, 10-32 X 17/32				$ 11.88
NI	318078522		Bx & Wires Ay		Appelez-nous	-
NIA	318120710		Cover-motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
