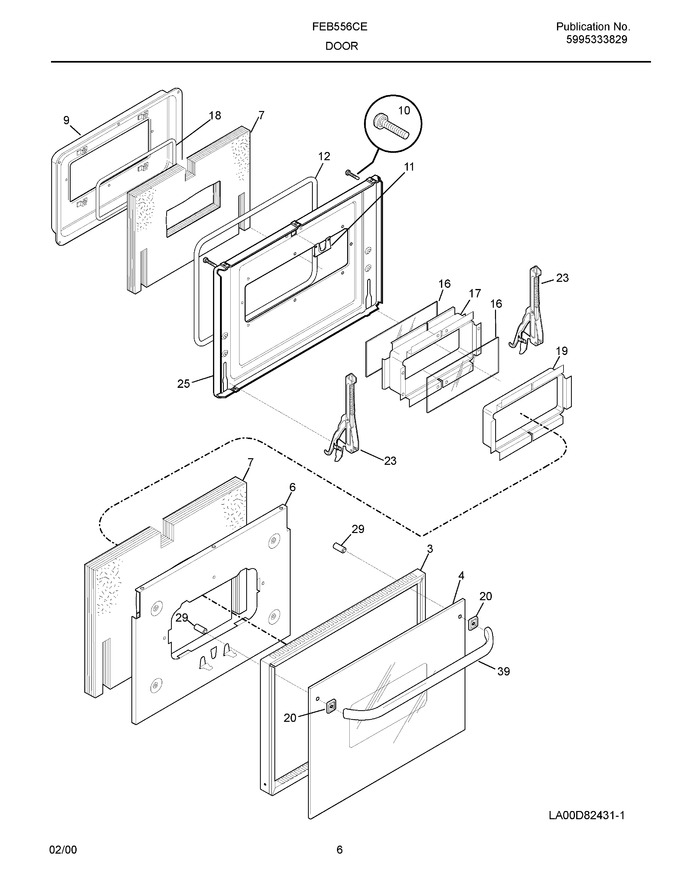

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318026520		Trim-oven Door Black		Appelez-nous	-
4	3202420		Glass-oven Door Black		Appelez-nous	-
6	318073600		Shield-air Wash		Appelez-nous	-
7	5303308470		Insulation Oven Door		Appelez-nous	-
9	318038600		Liner-oven Door		Appelez-nous	-
10	5303311217		Screw, 10-24 X 2 3/16-handle Door				$ 12.71
11	318065102		Strike Plate				$ 58.81
12	318178801		Seal-oven Door		Appelez-nous	-
16	5303324250		Glass-oven Door				$ 184.54
17	318139100		Spacer-glass Upper		Appelez-nous	-
18	3016263		Seal-rope Upper Oven				$ 66.15
19	318139201		Collar Glass Mtg		Appelez-nous	-
20	318014300		Spacer-handle Black				$ 36.44
23	5303310506		Hinge-oven Door		Appelez-nous	-
25	318048309		Liner-door Baffle		Appelez-nous	-
29	5303210003		Spacer-handle Mtg (2)		Appelez-nous	-
39	318362822		Handle-door Black   (Replaces: 316091103)				$ 104.05
NI	3202113		Button Plug		Appelez-nous	-
NI	5303308456		Screw, 8-18 X 0.531				$ 10.06
