01 - Cover Sheet


02 - Control Panel

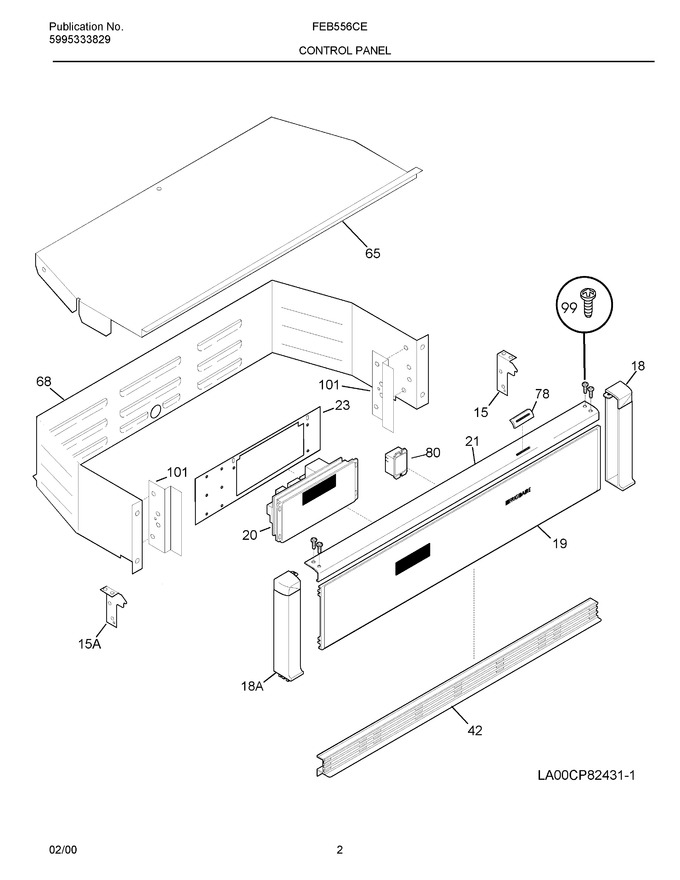

03 - Cavity/elements


04 - Door


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5303302286		Support Backguard Rh		Appelez-nous	-
18	5303311231		End Cap Rh Black		Appelez-nous	-
19	318030600		Panel-control Black		Appelez-nous	-
20	318010900		Clock/timer		Appelez-nous	-
21	5303300408		Trim-canopy Black		Appelez-nous	-
23	318111602		Bracket Timer		Appelez-nous	-
42	5303316651		Trim-vent Black		Appelez-nous	-
65	318038804		Cover-control Housing		Appelez-nous	-
68	5303302397		Housing Control		Appelez-nous	-
78	5303302396		Cover, Oven Vent Black		Appelez-nous	-
80	318111500		Relay (9 Volts)		Appelez-nous	-
99	5303307406		Screw, 6-32 X 3/8, Black				$ 11.29
101	5303302412		Shield-backsplash		Appelez-nous	-
15A	5303302287		Support Backguard Lh		Appelez-nous	-
18A	5303311232		End Cap Lh Black		Appelez-nous	-
NI	134178901		Screw #8 X 1/2   (Replaces: 5303211311)				$ 14.89
