SELECT A DIAGRAM

01 - Cover

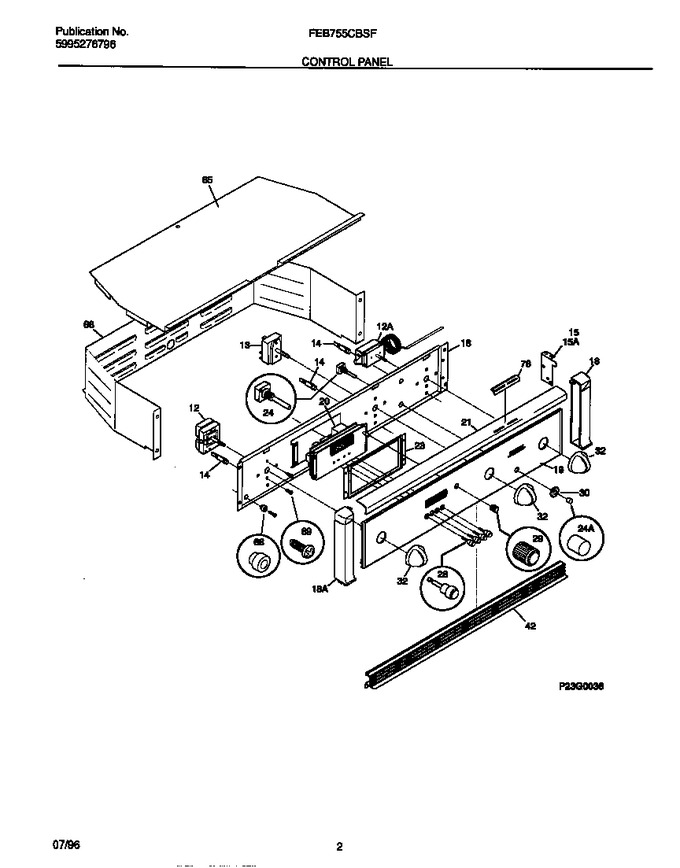

02 - Control Panel


03 - Lower Body


04 - Upper Body


05 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5303300978		Thermostat-oven, Lower		Appelez-nous	-
12	5303300975		Thermostat-oven, Upper				$ 287.35
13	5303300974		Switch-selector		Appelez-nous	-
14	5303300976		Light-indicator, 250 V		Appelez-nous	-
14	5303302299		Light-indicator, 250 V		Appelez-nous	-
14	5303299473		Light-indicator		Appelez-nous	-
15	5303302287		Support-backguard, Lh		Appelez-nous	-
15	5303302286		Support-backguard, Rh		Appelez-nous	-
16	5303302291		Plate-instrument Mtg		Appelez-nous	-
18	5303311208		End Cap, White, Rh		Appelez-nous	-
18	5303311209		End Cap, White, Lh		Appelez-nous	-
19	5303302292		Panel-control, Glass		Appelez-nous	-
20	5303302289		Clock/timer, Electronic		Appelez-nous	-
21	5303302283		Trim-canopy/shield, White		Appelez-nous	-
21	5303316956		Screw, Top Trim, 6-32 X 3/8, White, (2) (not Illustrated		Appelez-nous	-
23	3202088		Bracket-clock Mtg		Appelez-nous	-
24	5303302303		Nut, Hex, Light Switch (not Illustrated)		Appelez-nous	-
24	5303299547		Knob-light Switch, White		Appelez-nous	-
24	318090000		Switch-oven Light		Appelez-nous	-
28	5303302294		Knob-clock, White, (3)		Appelez-nous	-
29	5303302290		Knob-clock/timer, White		Appelez-nous	-
30	5303316744		Nut-decorative, White		Appelez-nous	-
32	5303305025		Knob-control, White, (2)		Appelez-nous	-
42	5303302296		Trim-vent, White		Appelez-nous	-
65	5303302386		Cover-control Housing		Appelez-nous	-
66	5303305024		Bumper, Rubber, (4)		Appelez-nous	-
68	5303302285		Housing-control		Appelez-nous	-
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
78	5303302284		Cover, Oven Vent, White		Appelez-nous	-
*64080	5303300414		Spacer, Cork & Rubber				$ 13.18
*64081	5303311318		End Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
