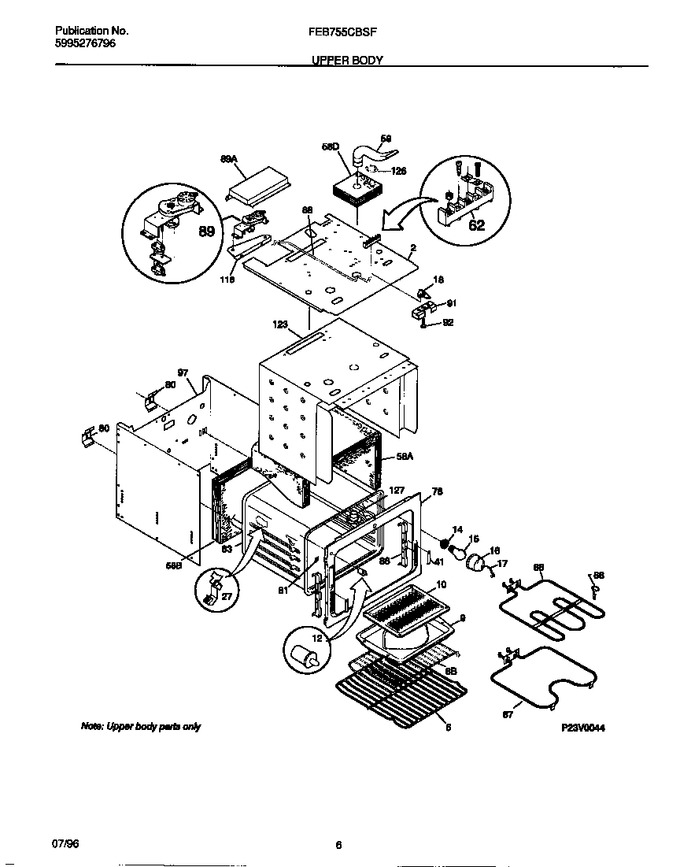

SELECT A DIAGRAM
01 - Cover
02 - Control Panel
03 - Lower Body
04 - Upper Body
05 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3016249 | Shield-oven Top |
|
- | |||||
| 6 | 5303299271 | Shelf-oven |
|
- | |||||
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 9 | 5303310521 | Pan-broiler |
|
- | |||||
| 10 | 5303310520 | Insert-broiler Pan |
|
- | |||||
| 12 | 5303311157 | Switch-door |
|
- | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 18 | 3051648 | Latch-door |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 58 | 5303317714 | Insulation, Oven Vent |
|
- | |||||
| 58 | 5303304703 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303304702 | Insulation, Oven Wrapper |
|
- | |||||
| 59 | 5303300951 | Tube-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 5303310518) |
|
Immediately | $ 26.69 | ||||
| 62 | 08002848 | Screw, 10-24 X 29/32, Terminal Block (not Illustrated) |
|
- | |||||
| 66 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 67 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 76 | 5303299251 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 81 | 3201632 | Spacer-oven |
|
- | |||||
| 83 | 5303305022 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 88 | 3016241 | Rod-latch |
|
- | |||||
| 89 | 5308015743 | Motor-latch/lock |
|
$ 211.92 | |||||
| 89 | 3016296 | Cover-motor |
|
- | |||||
| 91 | 3019069 | Housing-latch |
|
- | |||||
| 92 | 5308012004 | Stud - Axle |
|
$ 8.29 | |||||
| 97 | 318066501 | Wrapper, Back & Sides |
|
- | |||||
| 118 | 5303308461 | Bracket-latch |
|
- | |||||
| 123 | 5303299270 | Shield-insulation, Top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 5303206498 | Adapter Assy |
|
- |
