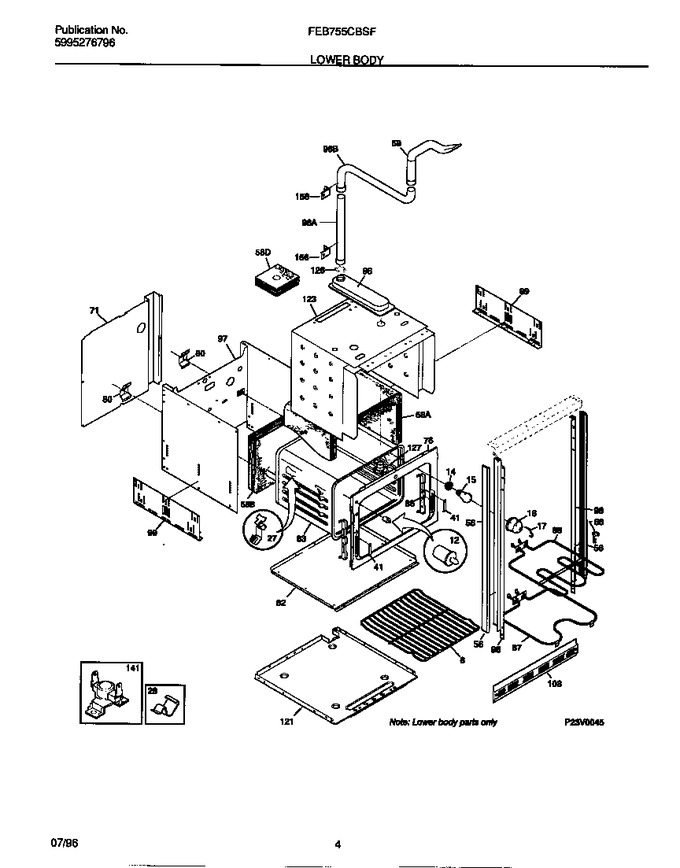

03 - Lower Body
04 - Upper Body
05 - Doors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 318345216 | Rack-oven (Replaces: 5303296873) |
|
$ 103.90 | |||||
| 12 | 5301314211 | Switch-door |
|
$ 95.29 | |||||
| 14 | 08011171 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 3201908 | Lamp-oven Light |
|
- | |||||
| 16 | 5304524341 | Glass-oven Light Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204483 | Retainer-lens |
|
- | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 28 | 3015722 | Clip-wire |
|
- | |||||
| 41 | 3019063 | Retainer-door |
|
- | |||||
| 56 | 5303302282 | Trim-bodyside, White, (2) |
|
- | |||||
| 58 | 5303317714 | Insulation, Oven Vent |
|
- | |||||
| 58 | 3019048 | Insulation, Oven Back |
|
- | |||||
| 58 | 5303304702 | Insulation, Oven Wrapper |
|
- | |||||
| 59 | 5303300422 | Duct-oven Vent |
|
- | |||||
| 66 | 5303016247 | Element, Broil |
|
$ 223.97 | |||||
| 67 | 318255101 | Element, Bake (Replaces: 3202440) |
|
$ 185.70 | |||||
| 68 | 5303307563 | Support-element |
|
- | |||||
| 71 | 5303305023 | Shield-wire |
|
- | |||||
| 76 | 5303299859 | Front-oven |
|
- | |||||
| 80 | 5303301261 | Spring,oven |
|
- | |||||
| 82 | 5303304699 | Shield-insulation |
|
- | |||||
| 83 | 5303299383 | Liner-oven Assy |
|
- | |||||
| 86 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 96 | 3016324 | Duct-oven Vent |
|
- | |||||
| 96 | 3016325 | Duct,oven Vent ,center |
|
- | |||||
| 96 | 3016327 | Duct-vent Pipe |
|
- | |||||
| 97 | 5303300980 | Wrapper, Back & Sides |
|
- | |||||
| 98 | 5303300954 | Trim-side, Inner, Rh |
|
- | |||||
| 98 | 5303300955 | Trim-side, Inner, Lh |
|
- | |||||
| 99 | 5303299686 | Support,adjustable |
|
- | |||||
| 103 | 318028701 | Trim-base, White |
|
$ 153.72 | |||||
| 121 | 5303304700 | Wrapper-base |
|
- | |||||
| 123 | 5303299270 | Shield-insulation, Top & Sides |
|
- | |||||
| 126 | 3016303 | Clip-insulator Retainer |
|
- | |||||
| 127 | 3205683 | Adapter Assy |
|
- | |||||
| 141 | 5303302280 | Thermostat-safety |
|
$ 203.24 | |||||
| 156 | 5303317198 | Bracket-oven Vent |
|
- | |||||
| *64082 | 08002868 | Screw 10 X 24 X 1/2 |
|
$ 14.18 | |||||
| *64083 | 3051070 | Screw, Hex Washer Head, 10-24 X 7/16, Special |
|
- | |||||
| *64084 | 3201881 | Lockwasher |
|
- | |||||
| *64085 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *64086 | 5303300421 | Cover-capillary |
|
- | |||||
| *64087 | 5303320505 | Box & Wires Assy |
|
- |
