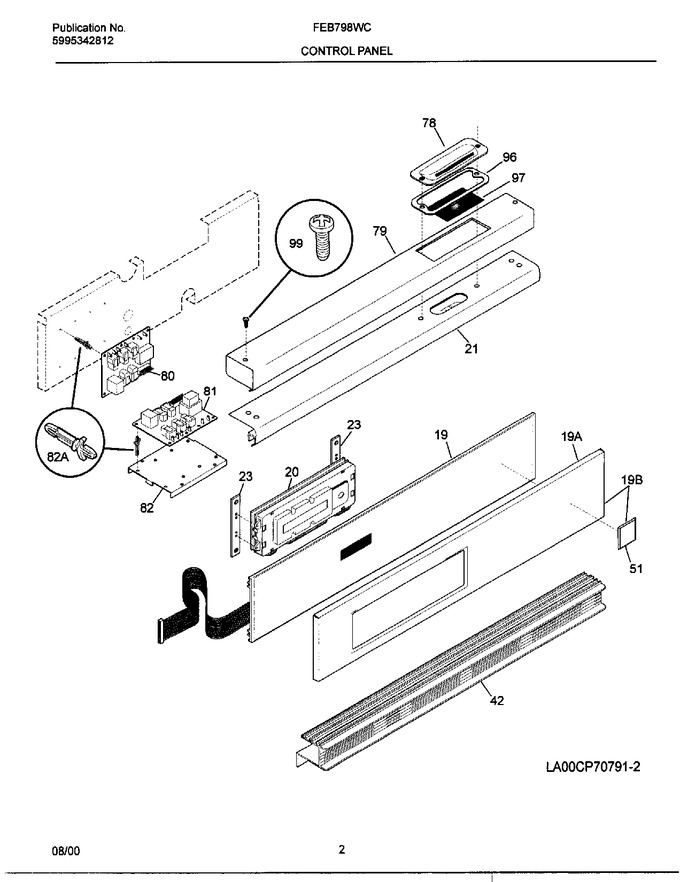

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318030209		Panel-control				$ 146.00
21	318028331		Trim-canopy		Appelez-nous	-
23	318015110		Bracket-clock Mtg		Appelez-nous	-
42	318027310		Trim,vent		Appelez-nous	-
51	316082300		Nameplate, Black		Appelez-nous	-
78	318037200		Cover,oven Vent ,stainless		Appelez-nous	-
79	318029603		Trim,top		Appelez-nous	-
82	318023600		Support, Relay Board, (2)		Appelez-nous	-
96	316037700		Seal,vent Cover		Appelez-nous	-
97	316037801		Tape,vent Cover		Appelez-nous	-
99	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
19A	318041801		Panel-control,metal		Appelez-nous	-
19B	318041701		Panel-decorative,stainless ,with Nameplate		Appelez-nous	-
82A	5303317199		Support, Snap-in, (3)				$ 36.75
F20	318010501		Clock/timer, Eoc				$ 666.75
F80	318022001		Relay Board			Immediately	$ 489.91
F81	318022002		Relay Board,transformer				$ 482.74
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303288566		Screw <6-20 X 1/4 >,clock   (Replaces: 5303320848)				$ 2.12
NI	5303307406		Screw,6-32 X 3/8 ,(2)				$ 11.29
NI	5303300414		Spacer, Cork & Rubber				$ 13.18
NI	3201861		Screw, 6 X 3/8				$ 0.76

    View Diagram in Separate Window       Print Part List
