SELECT A DIAGRAM

01 - Cover


02 - Control Panel


04 - Door


06 - Cavity Lower

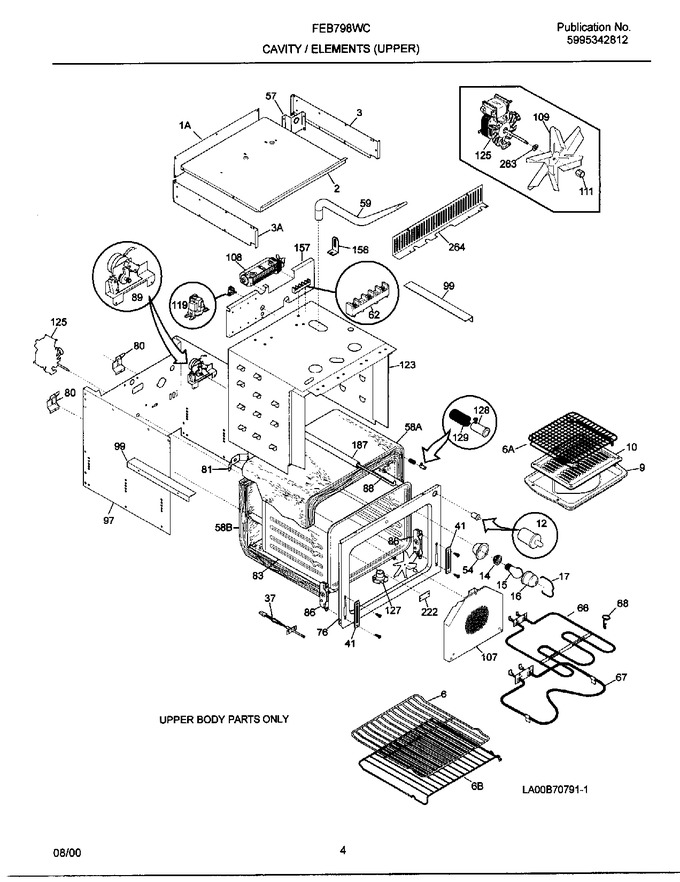

08 - Cavity Upper


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	318070203		Shield-oven Top		Appelez-nous	-
3	318070601		Panel,bodyside ,upper,rh		Appelez-nous	-
6	318025300		Rack,oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Socket-light/lamp   (Replaces: 5308011085)			Immediately	$ 56.10
15	3201908		Lamp-oven Light		Appelez-nous	-
16	5304524341		Glass-oven Light Lens   (Replaces: 3201911)			Immediately	$ 14.18
17	5304400195		Retainer Lenz		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
54	5303310514		Housing-oven Light		Appelez-nous	-
57	318072100		Plate,connection		Appelez-nous	-
59	318072511		Tube-oven Vent		Appelez-nous	-
66	5303322963		Element-bake		Appelez-nous	-
68	5304403015		Support-element				$ 35.04
76	318056104		Front-oven		Appelez-nous	-
80	5303301261		Spring,oven		Appelez-nous	-
81	5303320846		Plate,oven Mtg				$ 51.50
83	318089519		Liner-oven Assy				$ 228.80
86	5303310524		Channel-hinge		Appelez-nous	-
88	5303311222		Rod-latch				$ 129.19
97	318066500		Wrapper, Back & Sides		Appelez-nous	-
99	318055200		Support		Appelez-nous	-
107	5303318711		Cover,fan		Appelez-nous	-
109	5303311203		Fan Blade				$ 42.84
111	5303311205		Nut-fan Retainer		Appelez-nous	-
123	318071441		Shield-insulation,top & Sides		Appelez-nous	-
127	318317100		Adapter Assy   (Replaces: 5303310542)				$ 75.13
128	5303311163		Bushing		Appelez-nous	-
129	5303311164		Spring				$ 18.95
156	318024100		Bracket-vent Tube		Appelez-nous	-
157	318071601		Divider,upper Oven		Appelez-nous	-
187	318013501		Tube, Rod-latch		Appelez-nous	-
222	318080000		Plate,oven Temp Probe		Appelez-nous	-
263	5303322885		Spacer		Appelez-nous	-
264	318143811		Xx<hidden Wires Shie		Appelez-nous	-
1A	318071000		Back,main ,upper		Appelez-nous	-
3A	318070600		Panel,bodyside ,upper,lh		Appelez-nous	-
58A	5303311218		Insulation, Oven Wrapper		Appelez-nous	-
58B	5303311219		Insulation,oven Back		Appelez-nous	-
6A	5303311206		Shelf ( Broiler Pan ),broiler Pan		Appelez-nous	-
6B	318025200		Shelf,oven		Appelez-nous	-
89#	318095956		Motor-latch   (Replaces: 318095913)			Immediately	$ 143.83
F108	318073001		Motor-fan		Appelez-nous	-
F119	318005200		Switch-thermal, Lower		Appelez-nous	-
F12	318394803		Switch-light   (Replaces: 318089910)			Immediately	$ 44.23
F125	5303311202		Motor-convection				$ 114.07
F37	316217002		Probe-oven Temp   (Replaces: 316111203)			Immediately	$ 61.23
F62	5304409888		Terminal Block   (Replaces: 5303310518)			Immediately	$ 26.69
F67	318255100		Element-bake   (Replaces: 5303299718)			Immediately	$ 204.07
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	08002868		Screw 10 X 24 X 1/2				$ 14.18
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 29/32				$ 13.46
NI	5303323136		Screw-ground		Appelez-nous	-
NI	5303320422		Screw,6-20 X 5/16 ,side Trim ,(4)				$ 12.71
NI	5303311528		Screw 6-20x5/8 Oval Hd Ab Aqdr,oval Hd ,6-20 X 5/8,black		Appelez-nous	-
NI	5303308450		Screw, 8 X 3/8		Appelez-nous	-
NI	5303302745		Screw,10-16x1-1/8 ,square Drive				$ 8.35
NI	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
NI	318120710		Switch-door,(2)		Appelez-nous	-
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	318078501		Box & Wires Assy		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
