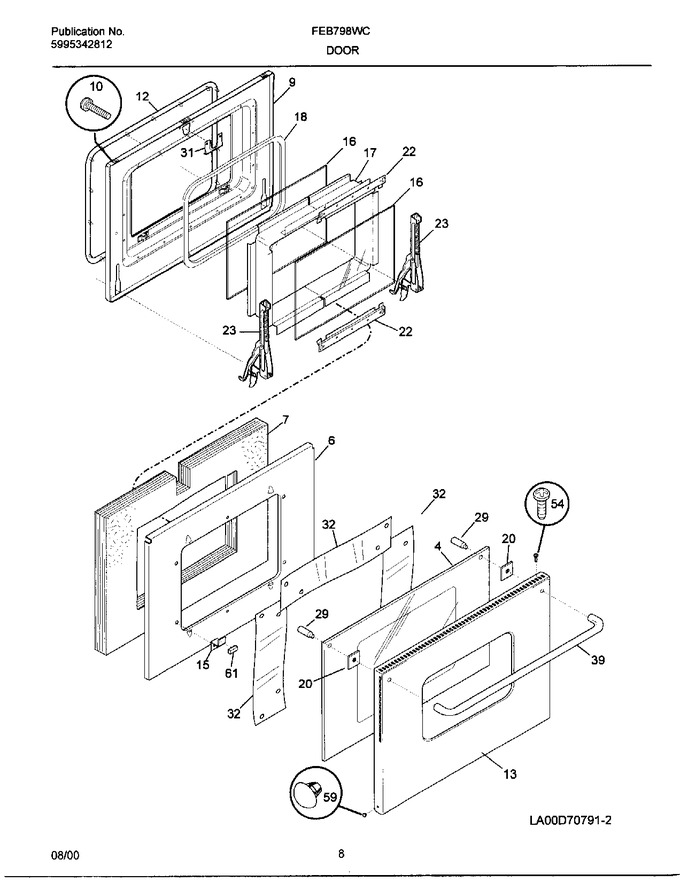

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318041200		Glass-oven Door,black ,inner		Appelez-nous	-
6	318073502		Shield,air Wash				$ 23.68
7	5303311214		Insulation,oven Vent		Appelez-nous	-
9	318048503		Liner-oven Door		Appelez-nous	-
10	5303316953		Screw-handle, (2)		Appelez-nous	-
12	318053100		Seal-oven Door				$ 317.89
13	318009200		Panel-oven Door,stainless		Appelez-nous	-
15	318091101		Bracket-glass, (3)		Appelez-nous	-
16	318042300		Glass-oven Door, Heat Barrier, (2)				$ 298.46
17	318042000		Spacer-glass		Appelez-nous	-
18	318053000		Seal-rope		Appelez-nous	-
20	318086020		Spacer-handle,(2)		Appelez-nous	-
22	5303310511		Retainer-glass		Appelez-nous	-
23	5303311259		Hinge,oven Door ,(2)		Appelez-nous	-
29	318014400		Spacer,door		Appelez-nous	-
31	318065102		Latch-door				$ 58.81
32	318056700		Deflector, 4.5`` X 16.6``		Appelez-nous	-
39	318039800		Handle-door,stainless ,oven		Appelez-nous	-
54	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
59	3202113		Button, Plug		Appelez-nous	-
61	5303316982		Foam Seal,seal ,(3)		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5303308450		Screw, 8 X 3/8		Appelez-nous	-
