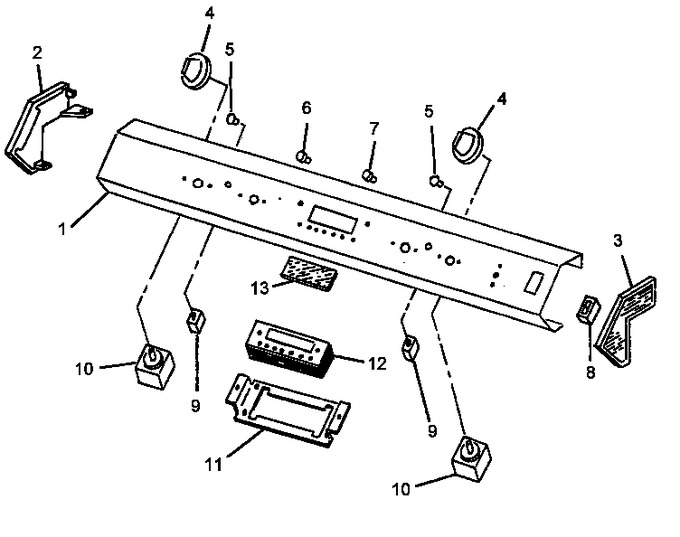

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	308690B		Panel, Control (blk)		Appelez-nous	-
2	308171B		End Cap, Lt (blk)		Appelez-nous	-
3	308172B		End Cap, Rt (blk)		Appelez-nous	-
4	308464B		Knob, Top Burner (black)		Appelez-nous	-
5	Y0301209		Lens, Indicator Light, Red		Appelez-nous	-
6	308957B		Knob, Set Button (blk)				$ 5.85
7	308956B		Knob, Clock (blk)				$ 4.83
8	Y0300570		Switch,oven Light Xx Blk		Appelez-nous	-
9	0306895		Light Indicator		Appelez-nous	-
10	Y0307359		Switch,inf(240tp-1244)		Appelez-nous	-
11	308085B		Bracket,erc Mount		Appelez-nous	-
12	0309473		Control,electronic Range		Appelez-nous	-
13	Y0302114		Filter, Gray		Appelez-nous	-
13	Y0308107		Glass, Clock		Appelez-nous	-
NI	Y0066765		Screw 6-32 X 3/8		Appelez-nous	-
NI	Y0041778		Screw 6-32x3/16 Slo Cook Sw		Appelez-nous	-
NI	304303B		Strip, Filler		Appelez-nous	-
NI	Y0052031		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	Y0075316		Screw 23 6x5/16 Ph Hd		Appelez-nous	-
NI	0309647		Harness, Epc/p.c. Board		Appelez-nous	-
