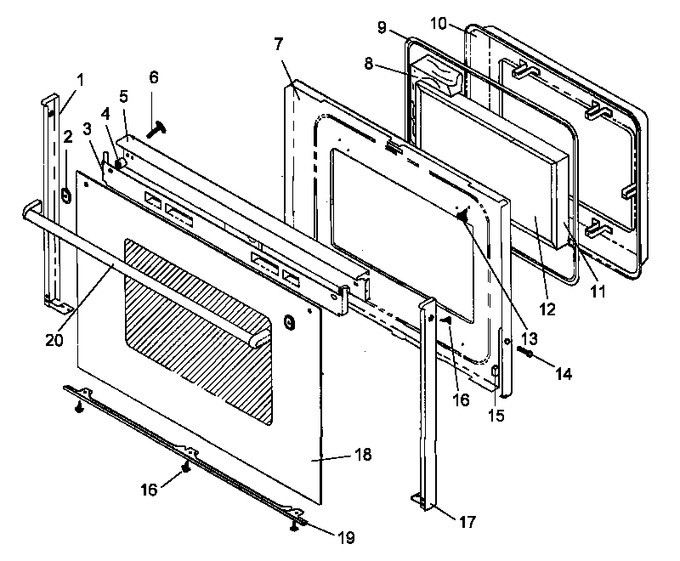

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	309523B		End Cap, Door (lt-blk)		Appelez-nous	-
2	309882B		Spacer, Handle (blk)		Appelez-nous	-
3	309642B		Assy, Glass Heat Shield (blk)		Appelez-nous	-
4	309461B		Bushing, Handle (blk)		Appelez-nous	-
5	309456B		Trim, Upper Door		Appelez-nous	-
6	Y0309973		Screw, No.10-24x11/4 (trs Ph Hd)		Appelez-nous	-
7	309519CG		Liner, Oven Door		Appelez-nous	-
8	Y0309772		Insulation,oven Door		Appelez-nous	-
9	Y0300432		Gasket, Oven Dr 82``		Appelez-nous	-
10	309781CG		Pad, Oven Door		Appelez-nous	-
11	Y0309071		Frame, Window Pack		Appelez-nous	-
12	Y0309074		Glass Window 18`` X 11`` X 3/16``		Appelez-nous	-
13	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
14	Y0302648		Rivet, Pop		Appelez-nous	-
15	Y0309627		Bumper, Rubber		Appelez-nous	-
16	Y0303777		Screw No.8-18 X .375 (bl)		Appelez-nous	-
17	309522B		End Cap, Door (rt-blk)		Appelez-nous	-
18	314819B		Panel, Glass Oven Door (blk)		Appelez-nous	-
19	309460B		Support, Glass (blk)		Appelez-nous	-
20	309624B		Handle, Oven Door (blk)		Appelez-nous	-
NI	Y0309068		Shield, Heat		Appelez-nous	-
NI	0300584		Label,cleaning Instr.		Appelez-nous	-
NI	12991101		Screw, Sm   (Replaces: M0210816)				$ 11.55

    View Diagram in Separate Window       Print Part List
