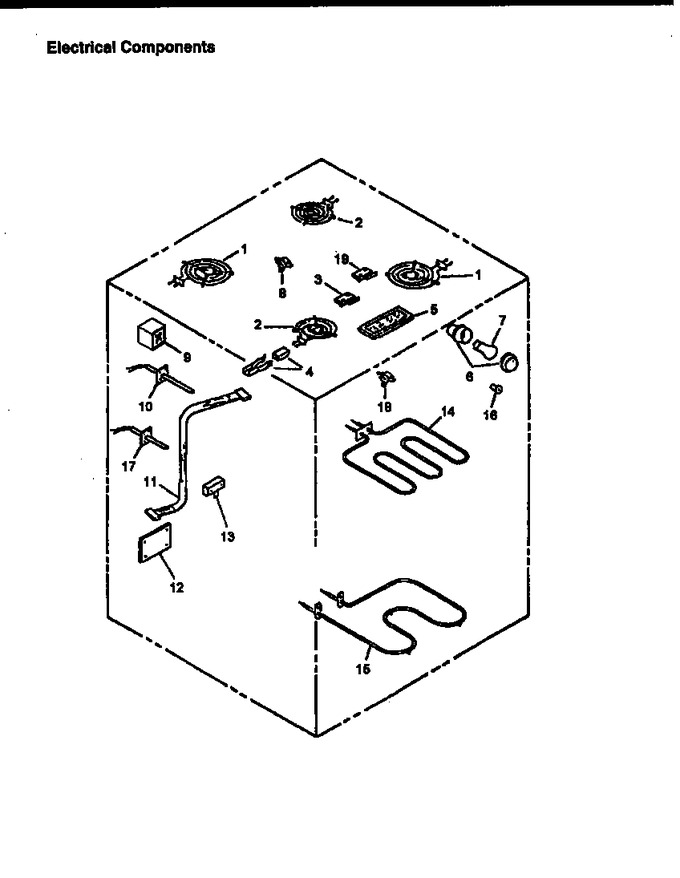

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10259865		Element, 5 Turn 2600w 8``   (Replaces: Y0304871)			Immediately	$ 105.92
2	WPW10259868		Element, 4 Turn 1500w 6``   (Replaces: Y0051576)			Immediately	$ 112.28
3	Y0065780		Switch, Clean Circuit				$ 11.77
4	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
5	0309473		Control,electronic Range		Appelez-nous	-
6	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
7	Y0042175		Bulb, Light		Appelez-nous	-
8	Y0308416		Switch, Limit Cont.		Appelez-nous	-
9	Y0309884		Fan Assy, Cooling (w/blade)		Appelez-nous	-
10	Y0300769		Sensor, Erc		Appelez-nous	-
11	0309647		Harness, Epc/p.c. Board		Appelez-nous	-
12	0309475		Circuit Board, Erc		Appelez-nous	-
13	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
14	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
15	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
16	Y0314367		Switch, Oven Light		Appelez-nous	-
17	Y0308800		Control, Limit (805deg)		Appelez-nous	-
18	Y0308417		Control, Fan		Appelez-nous	-
19	Y0308816		Switch, Latch		Appelez-nous	-
NI	Y0300662		Support		Appelez-nous	-
NI	0308408		Clip,element		Appelez-nous	-
NI	0306381		Hex Nut No.10-32 Nickel		Appelez-nous	-
NI	Y0308896		Cord, Power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
