SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Door Parts


05 - Burner, Manifold And Gas Control


06 - Body Parts


07 - Drawer Parts

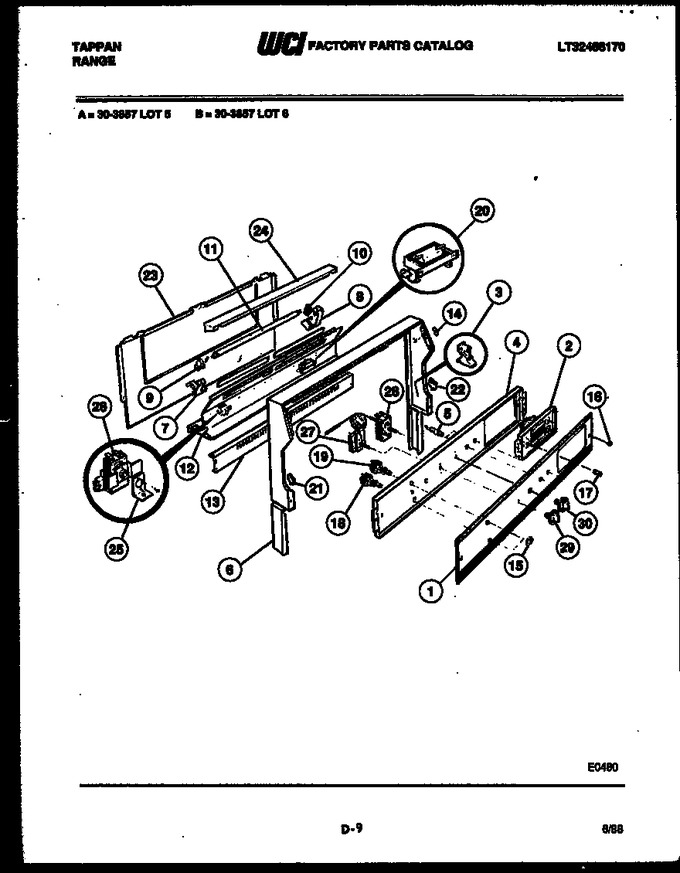

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131731		Glass, Backguard		Appelez-nous	-
2	3131146		Clock		Appelez-nous	-
3	3131237		Backguard Support		Appelez-nous	-
4	554T400F02-18		Plate-instrument Mtg.		Appelez-nous	-
5	318T023P11		Indicator Light (3)		Appelez-nous	-
6	3131436		Trim Wrapper		Appelez-nous	-
7	3131576		Fluor Bracket Lh		Appelez-nous	-
8	3131577		Fluor Bracket Rh		Appelez-nous	-
9	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
10	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-
11	3131275		Lamp Bulb Fluor.				$ 49.40
12	3131138		Panel Splasher		Appelez-nous	-
13	3131241		Trim-vent		Appelez-nous	-
14	3131607		Fastener, Glass (2)		Appelez-nous	-
15	045T071P01		Bezel, Switch		Appelez-nous	-
16	3051194		Nut - Decor (2)		Appelez-nous	-
17	358T206P01		Knob, Clock (3)		Appelez-nous	-
18	3051312		Switch - Fluor Light		Appelez-nous	-
19	3131145		Glass, Work Light (2)		Appelez-nous	-
20	3051115		Ballast		Appelez-nous	-
21	123T120P03		Cap Lh		Appelez-nous	-
22	123T120P04		Cap Rh		Appelez-nous	-
23	3131123		Shield, Backguard		Appelez-nous	-
24	3131137		Shield - Fluor Light		Appelez-nous	-
25	3131467		Angle S/c Thermo Mtg		Appelez-nous	-
26	722T071P01		Thermo Oven S/c		Appelez-nous	-
27	3131964		Thermo-bake		Appelez-nous	-
28	3091345		Switch, Selector		Appelez-nous	-
29	3131724		Knob-select Sw		Appelez-nous	-
30	3131725		Knob Thermo.		Appelez-nous	-
*13431	3131278		Angle-light Deflector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
