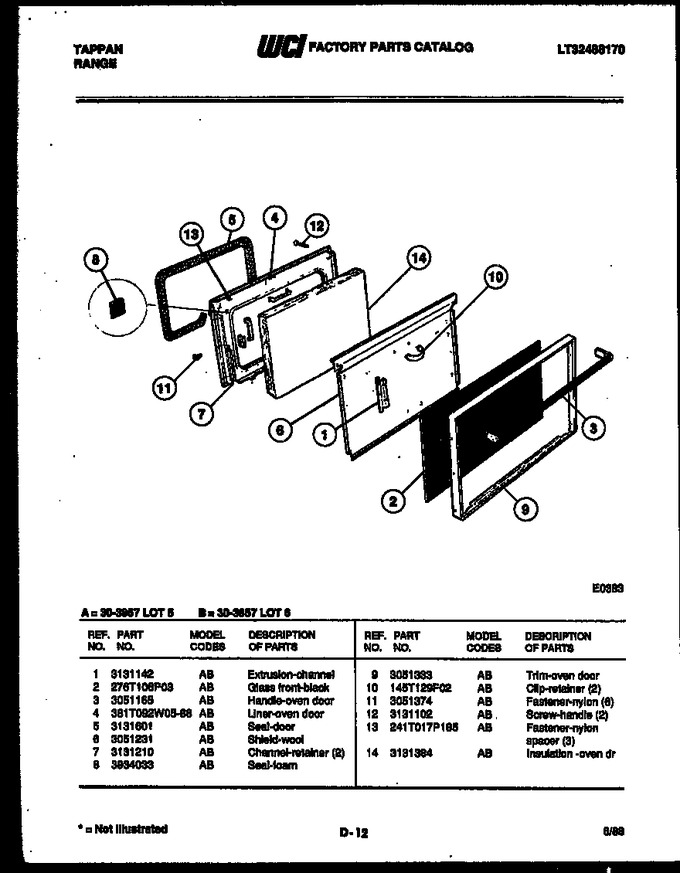

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131142 | Extrusion Channel |
|
- | |||||
| 2 | 276T106P03 | Glass Front, Black |
|
- | |||||
| 3 | 3051165 | Handle Oven Door |
|
- | |||||
| 4 | 381T092W05-86 | Liner, Oven Door |
|
- | |||||
| 5 | 3131601 | Seal, Door |
|
- | |||||
| 6 | 3051231 | Shield, Wool |
|
- | |||||
| 7 | 3131210 | Channel-retainer (2) |
|
- | |||||
| 8 | 3934033 | Seal, Foam |
|
- | |||||
| 9 | 3051333 | Trim Oven Door |
|
- | |||||
| 10 | 145T129F02 | Clip-retainer (2) |
|
- | |||||
| 11 | 3051374 | Fastener-nylon (6) |
|
- | |||||
| 12 | 3131102 | Screw, Handle (2) |
|
- | |||||
| 13 | 241T017P185 | Fastener, Nylon Spacer (3) |
|
- | |||||
| 14 | 3131384 | Insulation-oven Dr |
|
- |
