Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3131120 Panel-manifold Appelez-nous -
2 3131581 Knob, Top Valve (4) Appelez-nous -
3 3934028 Panel-main Top Wheat Appelez-nous -
4 618T038P05 Rod-main Top Sprt (2) Appelez-nous -
5 3131286 Bracket, Main Top Hinge (lh) Appelez-nous -
6 3131287 Bracket, Main Top Hinge (rh) Appelez-nous -
7 3131115 Pan, Burner (4) Appelez-nous -
8 283T013W01-18 Grate (4) Appelez-nous -
*13432 612T124P01 Retainer - Wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

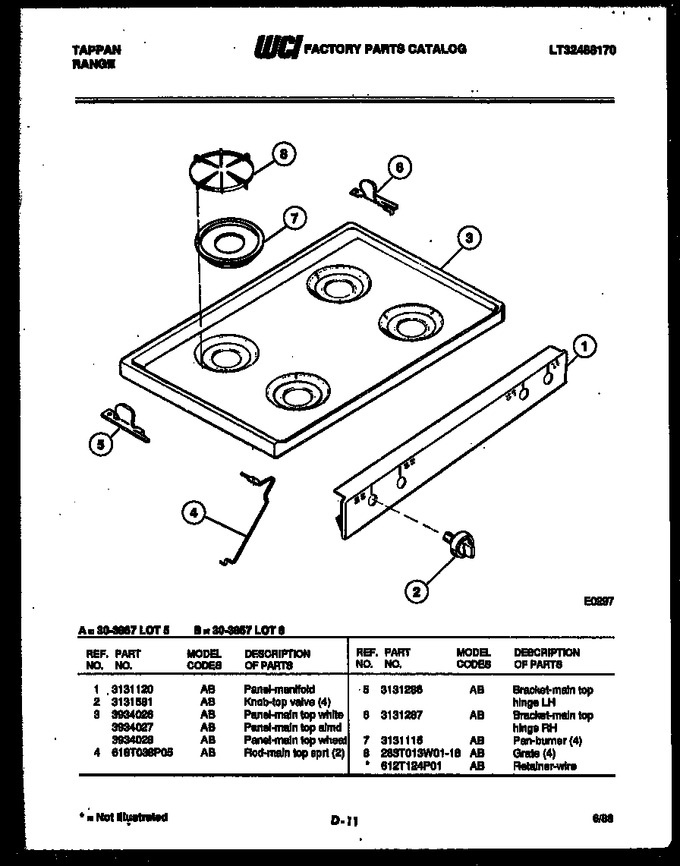

Diagram for 30-3857-66-06
