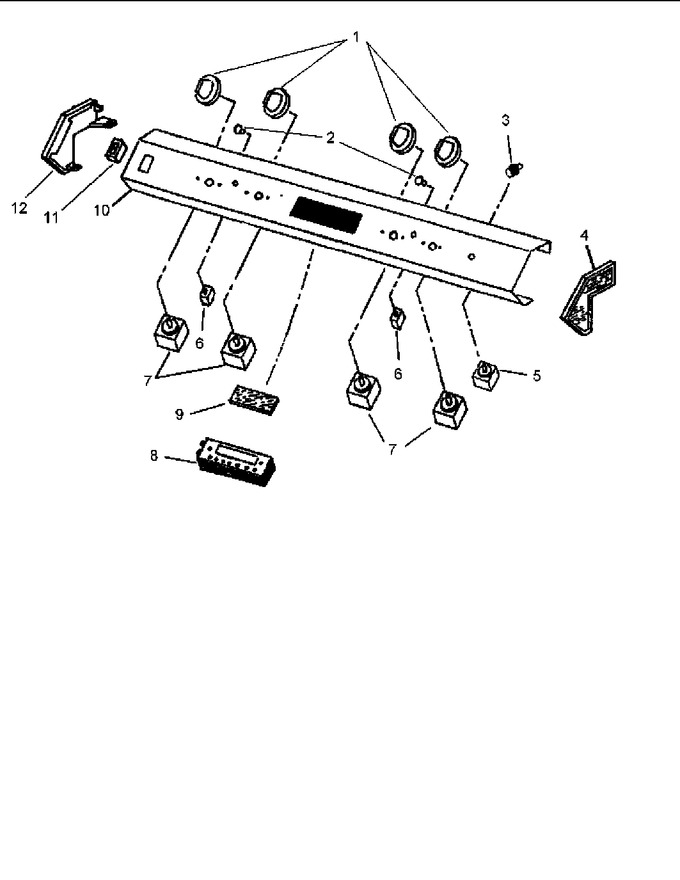

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 308464W | Knob, Top Burner (white) |
|
- | |||||
| 1 | 308464B | Knob, Top Burner (black) |
|
- | |||||
| 2 | 0303163 | Lens, Indicator Clear |
|
- | |||||
| 2 | Y0301209 | Lens, Indicator Light, Red |
|
- | |||||
| 3 | 308682W | Knob, Fan Switch (wht) |
|
- | |||||
| 3 | 308682B | Knob, Fan Switch (blk) |
|
- | |||||
| 4 | 308172B | End Cap, Rt (blk) |
|
- | |||||
| 4 | 308172W | End Cap, Rt (wht) |
|
- | |||||
| 5 | Y0300574 | Switch, Fan |
|
- | |||||
| 6 | 0306895 | Light Indicator |
|
- | |||||
| 7 | Y0307359 | Switch,inf(240tp-1244) |
|
- | |||||
| 8 | Y0315031 | Erc2c-electric Csa (clock) |
|
- | |||||
| 9 | 315596W | Overlay, Mylar Amana (white) |
|
- | |||||
| 9 | 315596B | Overlay, Mylar Amana (black) |
|
- | |||||
| 10 | 314697B | Control Panel-elec |
|
- | |||||
| 10 | 314697W | Control Panel-elect |
|
- | |||||
| 11 | Y0308659 | Switch, Oven Light Wht |
|
- | |||||
| 11 | Y0300570 | Switch,oven Light Xx Blk |
|
- | |||||
| 12 | 308171W | End Cap, Lt (wht) |
|
- | |||||
| 12 | 308171B | End Cap, Lt (blk) |
|
- | |||||
| NI | Y0075316 | Screw 23 6x5/16 Ph Hd |
|
- | |||||
| NI | WP3400882 | Screw, No.8-32 X 3/16 Pph (Replaces: Y0041768) |
|
Immediately | $ 6.47 | ||||
| NI | Y0315227 | Sleeving, Fibreglass |
|
- | |||||
| NI | Y0041778 | Screw 6-32x3/16 Slo Cook Sw |
|
- | |||||
| NI | Y0094682 | Screw Type 23 6-32x5/16 |
|
- |
