SELECT A DIAGRAM

01 - Cabinet Assembly


02 - Control Panel Assembly


03 - Electrical Components


04 - Fuse Box Assembly


05 - Glass Cooktop - All Cc12


06 - Glass Cooktop - Cc13e/w


07 - Grille And Griddle - Cc7ls


08 - Main Top Assembly


09 - Open Coil Cooktop - Cc1e/w


10 - Open Coil Cooktop - Cc1ef/wf


11 - Oven Assembly


12 - Oven Door Assembly


13 - Storage Drawer Assembly


14 - Ventilation Parts

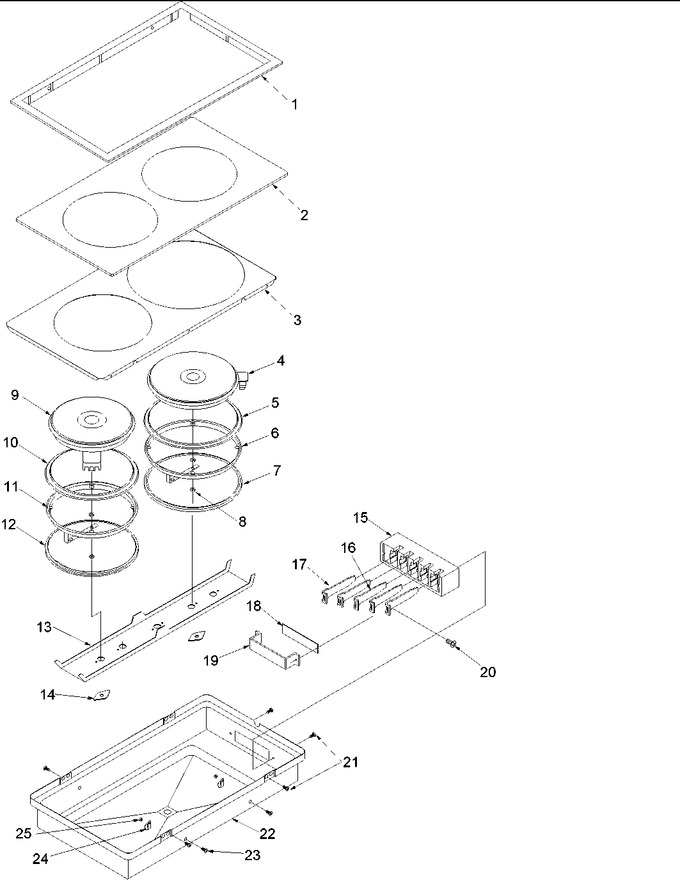

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300983B		Module Top-elect (blk Enamel)		Appelez-nous	-
2	Y0061576		Glass, Top		Appelez-nous	-
3	0061494		Support, Glass		Appelez-nous	-
4	0061610		Element, Large		Appelez-nous	-
5	061612B		Ring Large Trim (black)		Appelez-nous	-
6	0061609		Gasket, Ring		Appelez-nous	-
7	Y0059632		Gasket		Appelez-nous	-
8	0061486		Nut		Appelez-nous	-
9	WP3147131		Element, Small   (Replaces: Y0061611)				$ 244.76
10	C2740301		Ring Small Trim (black)		Appelez-nous	-
11	0061608		Gasket, Ring		Appelez-nous	-
12	Y0059631		Gasket		Appelez-nous	-
13	Y0061495		Bracket, Elem. Mtg.		Appelez-nous	-
14	0061614		Spring, Leaf		Appelez-nous	-
15	Y0314569		Module, Plug Block		Appelez-nous	-
16	Y0052041		Contact, Spade-ground				$ 4.83
17	Y0052040		Contact, Spade-power		Appelez-nous	-
18	Y0041994		Insulator-cooktop Module		Appelez-nous	-
19	0061496		Bracket, Plug Blk. Mtg.		Appelez-nous	-
20	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
21	Y0073657		Screw, No.6-20 X .375 Pan Hd Ph		Appelez-nous	-
22	300749B		Pan, Module		Appelez-nous	-
23	0041833		Screw 8-32x.375 Dk Gl Dr Hdl		Appelez-nous	-
24	Y0074685		Wire Clamp, Insulated		Appelez-nous	-
24	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
25	WP488130		Nut K   (Replaces: Y0097886)				$ 6.27
NI	Y0052966		Owner`s Guide, Xst102		Appelez-nous	-
NI	0061423		Electric Harness		Appelez-nous	-
NI	Y0043430		Rtv (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
