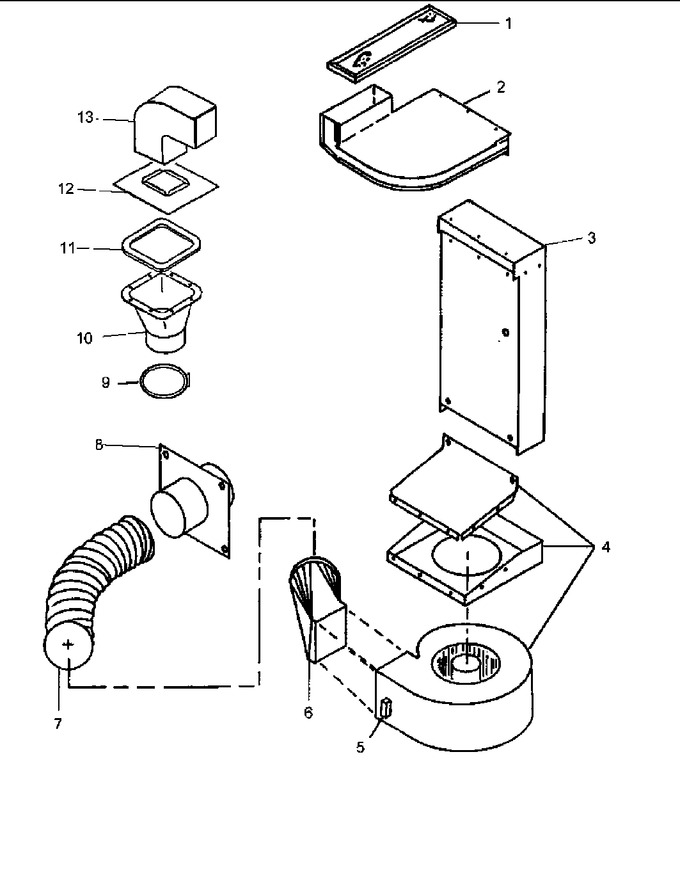

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0307363 | Filter (17.75``x4.0``x.375``) |
|
$ 16.98 | |||||
| 2 | 314755CG | W/a Top Plenum |
|
- | |||||
| 3 | Y0314779 | W/a Rear Plenum |
|
- | |||||
| 4 | Y0314676 | Assy, Blwr Box W/capacitor |
|
- | |||||
| 5 | D6711804 | Capacitor |
|
- | |||||
| 5 | Y0308417 | Control, Fan |
|
- | |||||
| 6 | Y0307508 | Duct, Blower |
|
- | |||||
| 7 | Y0307945 | Duct, Flex |
|
- | |||||
| 8 | Y0307592 | Thimble, 6`` Duct |
|
- | |||||
| 9 | Y0307680 | Clamp, Worm Gear |
|
- | |||||
| 10 | Y0310943 | Transition,wall/floor/side Cab |
|
- | |||||
| 11 | Y0301343 | Gasket, Bonded |
|
- | |||||
| 12 | Y0315330 | Plate, Duct |
|
- | |||||
| 13 | Y0315331 | Floor Duct, Elbow |
|
- | |||||
| NI | Y0071914 | Screw, Tt Ab No.8 X 3/8`` |
|
- | |||||
| NI | Y0072230 | Screw No.6-32 X 3/8 |
|
- | |||||
| NI | Y0315556 | Shield, Relay |
|
- | |||||
| NI | Y0309016 | Screw, No.8-18 X 3/8 P Hex Wsh T |
|
- | |||||
| NI | M0282005 | Nut K (Replaces: Y0078790) |
|
$ 7.07 |
