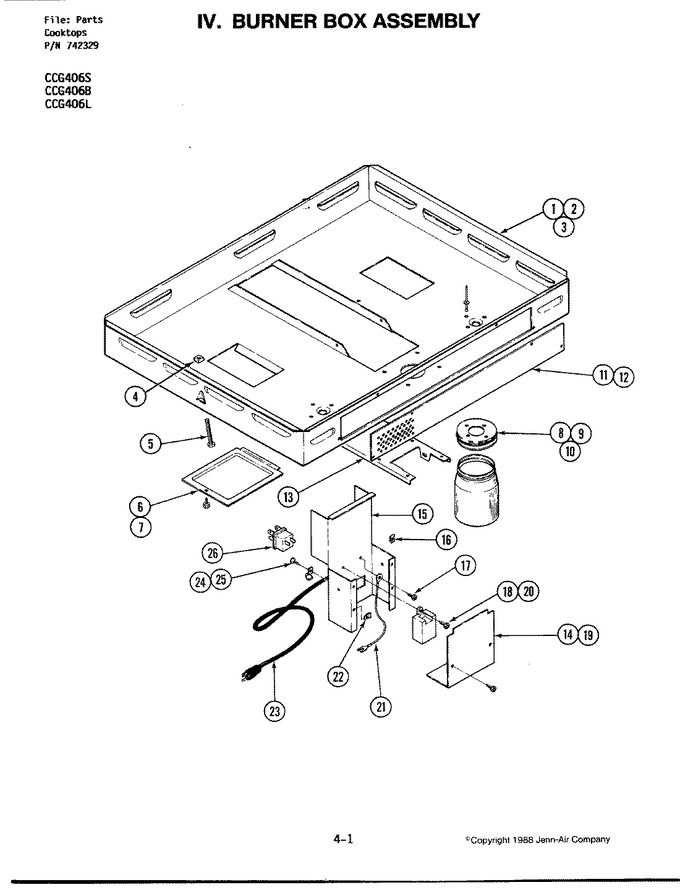

01 - Burner Box
02 - Burner/manifold Assembly
03 - Control Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704500 | Box, Burner | 11 |
|
- | ||||
| 2 | WPW10253196 | Screw (Replaces: Y707113) | 11 |
|
$ 3.76 | ||||
| 3 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 | ||||
| 4 | M0282009 | Nut,square (Replaces: Y707124) | 11 |
|
$ 12.06 | ||||
| 5 | Y707121 | Screw | 11 |
|
- | ||||
| 6 | 702333 | Cover, Access(r.h) | 11 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 8 | Y707870 | Lid, Jar | 11 |
|
- | ||||
| 9 | WPY707869 | Jar, Drain (Replaces: Y707869) | 11 |
|
$ 61.43 | ||||
| 10 | WP210720 | Rivet, Jar Lid (Replaces: Y707128) | 11 |
|
$ 12.14 | ||||
| 11 | Y704538 | Cover, Front | 11 |
|
- | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 13 | 704282 | Plate, Filler Bottom | 11 |
|
- | ||||
| 14 | 704271 | Cover, Electrical Box | 11 |
|
- | ||||
| 15 | 704280 | Box, Electrical | 11 |
|
- | ||||
| 16 | Y700834 | Clip | 11 |
|
- | ||||
| 17 | WP71001171 | Screw (Replaces: Y712087) | 11 |
|
$ 6.26 | ||||
| 18 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 19 | WP59002061 | Screw (Replaces: Y707172) | 11 |
|
$ 6.98 | ||||
| 20 | Y704540 | Module, Spark | 11 |
|
- | ||||
| 21 | 704327 | Wire, Green | 11 |
|
- | ||||
| 22 | 701958 | Clip, Tinnerman | 11 |
|
- | ||||
| 23 | 704548 | Cord, Power | 11 |
|
- | ||||
| 24 | 704554 | Relief, Strain | 11 |
|
- | ||||
| 25 | W11233072 | Screw (Replaces: Y708733) | 11 |
|
Immediately | $ 12.62 | |||
| 26 | 704542 | Plug, Male Load | 11 |
|
- |
