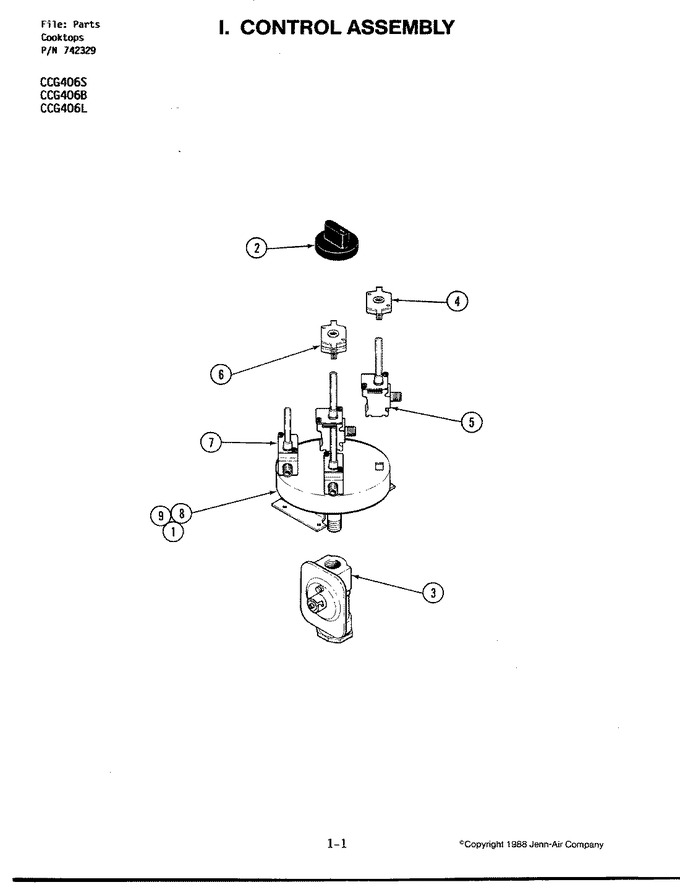

03 - Control Assembly
04 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.04 | |||
| 2 | WP71001641 | Knob, Switch (Replaces: Y704539) | 11 |
|
Immediately | $ 15.68 | |||
| 3 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 11 |
|
$ 98.02 | ||||
| 5 | 704275 | Valve, Gas (rt) | 11 |
|
- | ||||
| 6 | Y704269 | Switch, Valve (lh) | 11 |
|
- | ||||
| 7 | 704274 | Valve, Gas (lt) | 11 |
|
- | ||||
| 8 | Y712273 | Manifold | 11 |
|
- | ||||
| 9 | 704279 | Harness, Wire | 11 |
|
- |
